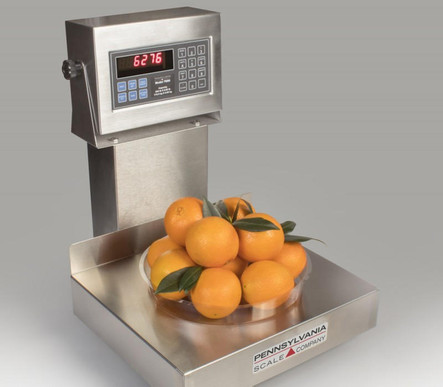

Pennsylvania 6274-50 Checkweighing Bench Scale
Discontinued - Replaced with 6500 Series
The 6200 series bench scales from Pennsylvania Scale Company offers simple, easy-to-use operation, an extra large sanitary platform, and economic pricing, making the 6200 series bench scale a great choice for a wide range of applications! With their IP66 rating, the 6200 series bench scales can be used in wet or dry conditions and the 7400+ indicator makes simple weighing a breeze.
Features
- Stainless steel construction ideal for harsh wet environments
- IP66 environmentally sealed aluminum load cell
- 12" x 14" platform
- Standard RS-232 data output
- Easy to use, setup, and service
- PLUS+ Series electronics for maximum interchangeability
- Two year limited warranty
Indicator - 7400+
- Stainless Steel wash down enclosure
- Weight only; Pushbutton Tare, 5-button Front Panel
- Process and bulk weighing applications imbedded
- Unique Calibration sequence – 10 point linearization
- Screw terminals for load cell connect, sealed fittings
- 2 Independent Data Outputs + I/O terminals
Applications
- Factory and industrial environments
- Food preparation
- Packing and shipping
- Check weighing
- General weighing
2 year manufacturer's warranty
- Capacity:
- 50 lb / 22.68 kg
- Readability:
- 0.01 lb / 5 g
- Pan Size:
- 12" x 14" with 2" lip on rear
- Weighing Units:
- Lbs and kgs or any (2) weight units
- Construction:
- heavy duty cast frame, aluminum pan
- Calibration:
- External
- Communication:
- Standard RS-232 by DB9
- Indicator:
- 7400+
- Display Type:
- 0.56" red LED display
- Buttons:
- zero, gross/net, units, tare, print
- Overall Dimensions:
- 14" x 17" x 18.5"
- Weight:
- approximately 38 lbs
- Power:
- 110 VAC or optional 220 VAC +/- 15%; 50/60 Hz; 30 Watts
- Brand:
- Pennsylvania Scale
- Model:
- 6274-50
