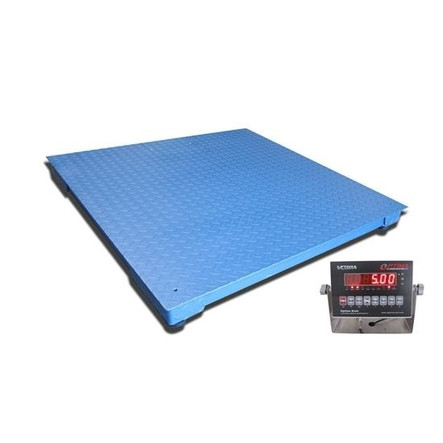

Optima OP-916 Floor Scale, 4' x 5', 5,000 lbs. x 1 lb, NTEP, Class III
The Optima OP-916 floor scale is made to handle the toughest of industrial environments thanks to its welded steel and rugged diamond deck construction. Anti-corrosion, baked on powder paint defends the base against any chemical spills. Inside the scale are four NTEP approved certified alloy steel load cells. A height adjustable ball and cup leveling feet make sure your weighing is as level as possible. Its indicator has a metal casing with an LCD display and is NTEP approved. Communication with peripherals is possible through the RS232 port.
Features
- Indicator NTEP CC: 12-004A1, Class III
- Base NTEP CC: 10-081A2, Class III
- Painted Steel construction
- Factory calibrated
- 20' long heavy duty shielded cable
- Height adjustable ball and cup leveling feet
- Overload/Underload alarm
- 1 year limited manufacturer's warranty
- Overload protection
- AC power adapter
Applications
- General Weighing
- Dynamic Weighing
- Accumulation
- Counting
Options
(Please contact us for questions about the available options.)
- Ramps
- Bumper Guards
- Printer
- Remote Display
- Software
- Indicator Stand (standard or stainless steel)
- Pit Frame
- Portability Frame
- Anchoring Plates
- Calibration Weights
Documentation
Optima OP-916 NTEP Data Sheet Optima OP-900 Indicator Manual
1 year limited manufacturer's warranty on electronics, 2 year limited warranty on the base
- Capacity:
- 5,000 lbs
- Readability:
- 1 lb
- IP Rating:
- IP65
- Overload Protection:
- 200%
- Dimensions:
- 48 x 60 x 4.2 "
- Weighing Units:
- lb, kg
- Construction:
- Painted Steel
- Communication:
- RS232 port
- Cable Length:
- 20 ft
- Power:
- AC/DC
- Net Weight:
- 82 lb
- Brand:
- Optima
- Model:
- OP-916
