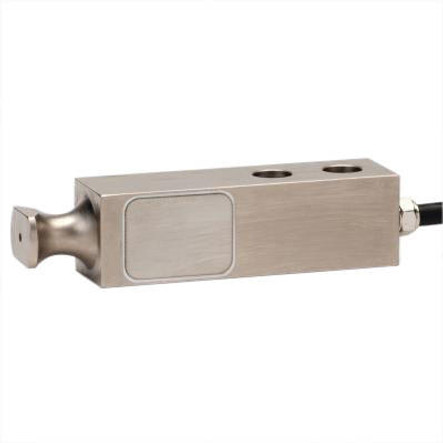

Optima OP-357 1,500 lb Alloy Steel Single Ended Beam Load Cell
Features
- 1,500 lb capacity rating
- Alloy steel construction
- IP67 rating
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
Interchange
- Artech 30410
- Rice Lake RL5723
- Coti Global Sensors CG-30410
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 1,500 lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10‚° C - +40‚° C
- Dimensions:
- 5.12 x 1.25 x 1.25 in
- Construction:
- Alloy steel
- IP Rating:
- 67
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 20 ft
- Manufacturer:
- Optima
- Model:
- OP-357
