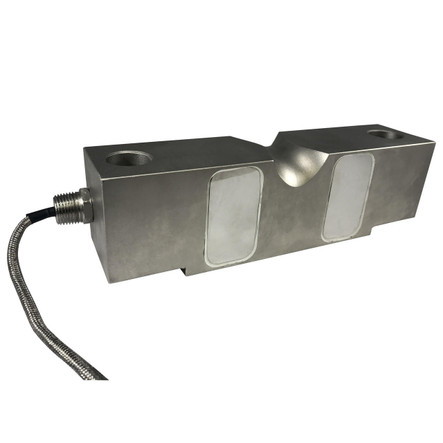

Optima OP-350 50,000 LE lb Alloy Steel Double Ended Beam Load Cell
Features
- NTEP CC: 14-028
- Class IIIL
- 50,000 LE lb capacity rating
- Alloy steel construction
- Nickel plated
- IP67 rating
- Load cell cable length 60 feet
- Safe overload up to 150% capacity
Interchange
- Artech 70310
- Celtron CLB
- Totalcomp TDE58
- Coti Global Sensors CG-58
- Revere 5303
- Rice Lake RL75058
- Tedea 4158
- Sensortronics 65058A
Documentation
1 year limited manufacturer's warranty
- NTEP:
- Yes
- Class:
- IIIL
- Capacity:
- 50,000 LE lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 10.25 x 2.94 x 2.44 in
- Hole Thread:
- 1/2-14NPT
- Construction:
- Alloy steel
- Finish:
- Nickel plated
- IP Rating:
- 67
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 700±10 ohms
- Output Resistance:
- 700±5 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 60 ft
- Manufacturer:
- Optima
- Model:
- OP-350
