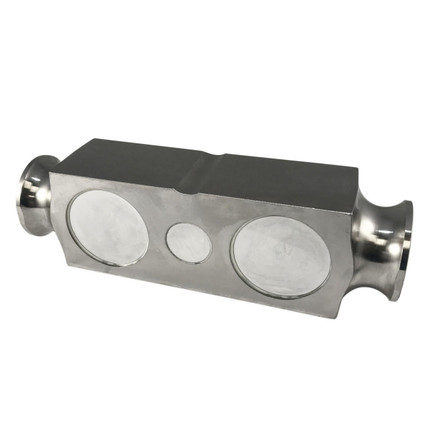

Optima OP-347 60K lb Alloy Steel Double Ended Beam Load Cell
Features
- 60,000 lb capacity rating
- Alloy steel construction
- Nickel plated
- IP67 rating
- Load cell cable length 60 feet
- Safe overload up to 150% capacity
Interchange
- Airweigh AW900 (50K SE)
- Airweigh AW900B (60K SE)
- NV Technology BLC-1 60K-N
- Revere 9423
- Sensortronics 65040-1134
- Sooner Scale 80210
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 60K lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 8.25 x 2.45 x 1.94 in
- Construction:
- Alloy steel
- Finish:
- Nickel plated
- IP Rating:
- 67
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 700±10 ohms
- Output Resistance:
- 700±5 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 60 ft
- Manufacturer:
- Optima
- Model:
- OP-347
