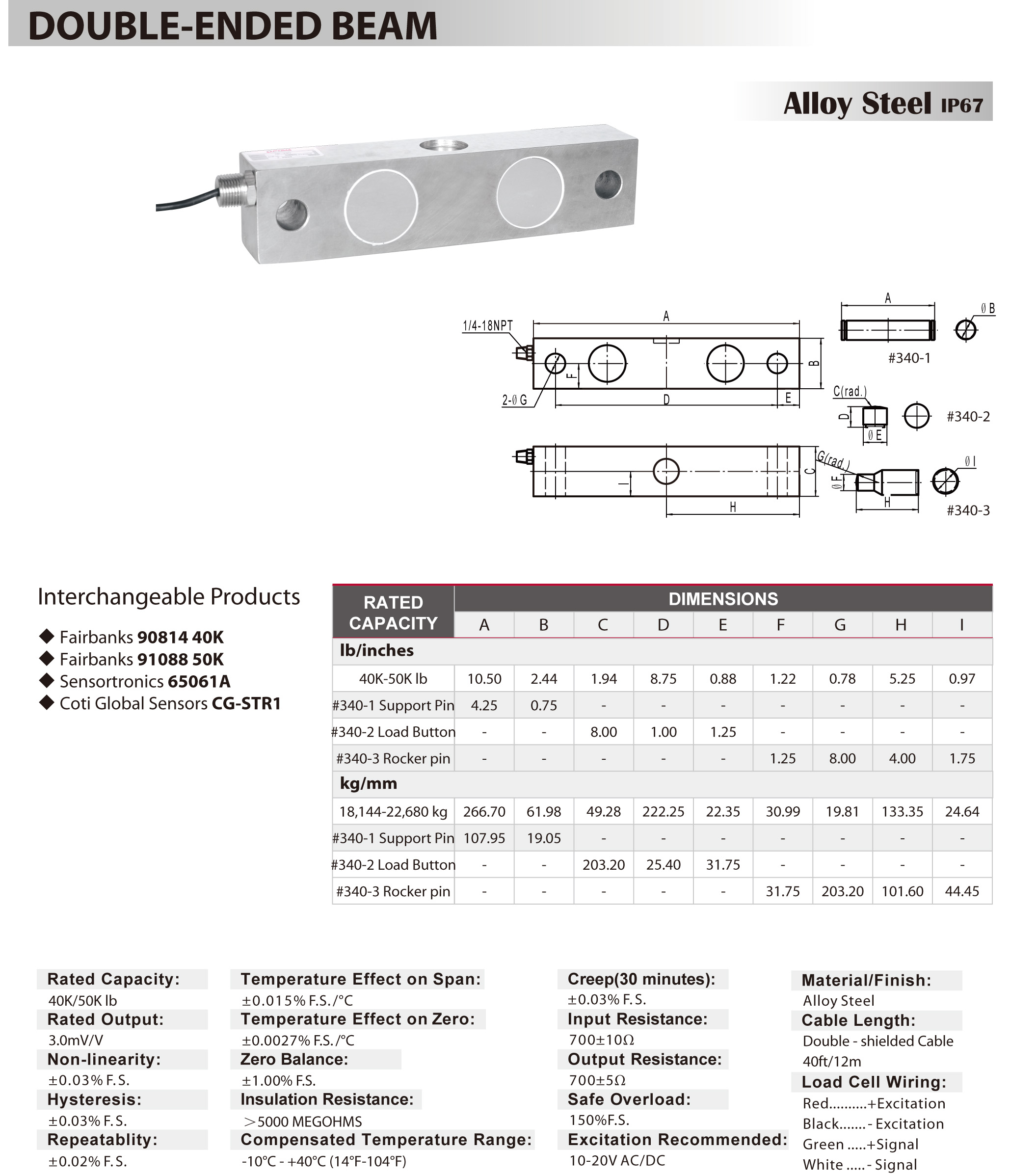

Optima OP-340 40,000 lb Alloy Steel Double Ended Beam Load Cell
Features
- 40,000 lb capacity rating
- Alloy steel construction
- IP67 rating
- Load cell cable length 40 feet
- Safe overload up to 150% capacity
Interchange
- Fairbanks 90814 40K
- Fairbanks 91088 50K
- Sensortronics 65061A
- Coti Global Sensors DB-STR1
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 40,000 lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 10.50 x 2.44 x 1.94 in
- Construction:
- Alloy steel
- IP Rating:
- 68
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 700±10Ω
- Output Resistance:
- 700±5Ω
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 40 ft
- Manufacturer:
- Optima
- Model:
- OP-340
