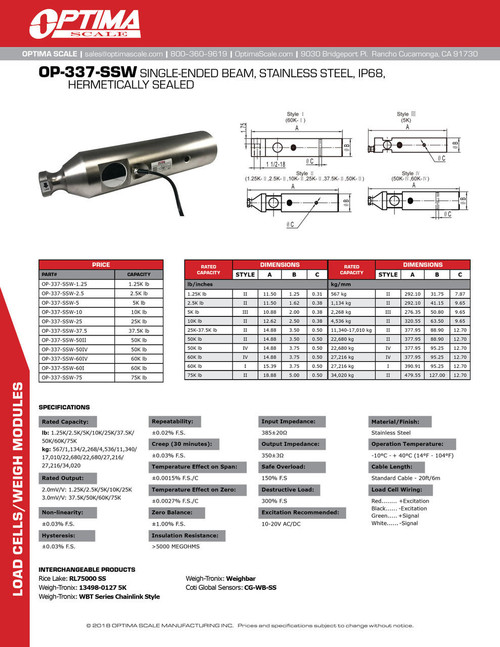

Optima OP-337-SSW-75 75,000 lb Stainless Steel Weighbar Single Ended Beam Load Cell
Feature
- 75,000 lb capacity rating
- Stainless steel construction
- Moisture-proof sealed, ideal for hostile environment
- IP68 rated hermetically sealed
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
- Easy install
- Style II
Common Applications
- OEM
- Floor Scales
- Tank Scales
- Truck Scales
Interchange
- Rice Lake RL75000 SS
- Coti Global CG-WB-SS
- Weigh-Tronix Weighbar
1 year limited manufacturer's warranty
- Manufacturer:
- Optima
- Model:
- OP-337-SSW-75
- Style:
- II
- Capacity:
- 75,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 18.88 in
- Height:
- 5 in
- Construction:
- Stainless steel
- IP Rating:
- IP68
- Seal Type:
- Hermetically sealed
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
