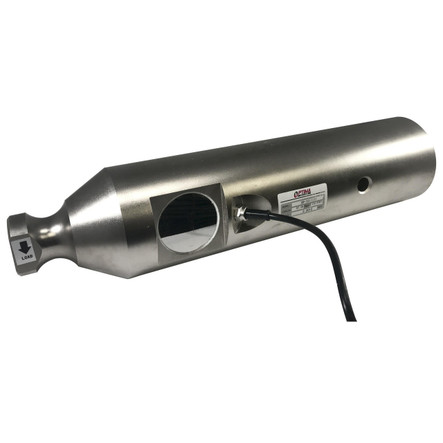

Optima OP-337-37.5 37,500 lb Weighbar Single Ended Beam Load Cell
Features
- 37,500 lb capacity rating
- Alloy steel construction
- Moisture-proof sealed, ideal for hostile environment
- IP67 rated welded seal
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
- Easy install
Common Applications
- OEM
- Floor Scales
- Tank Scales
Interchange
- Rice Lake RL75000
- Coti Global CG-WB
- Weigh-Tronix Weighbar
1 year limited manufacturer's warranty
- Manufacturer:
- Optima
- Model:
- OP-337-37.5
- Style:
- II
- Capacity:
- 37,500 lb
- Safe Overload:
- 150% capacity
- Length:
- 14.88 in
- Height:
- 3.5 in
- Construction:
- Alloy steel
- IP Rating:
- IP67
- Seal Type:
- Welded seal
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
