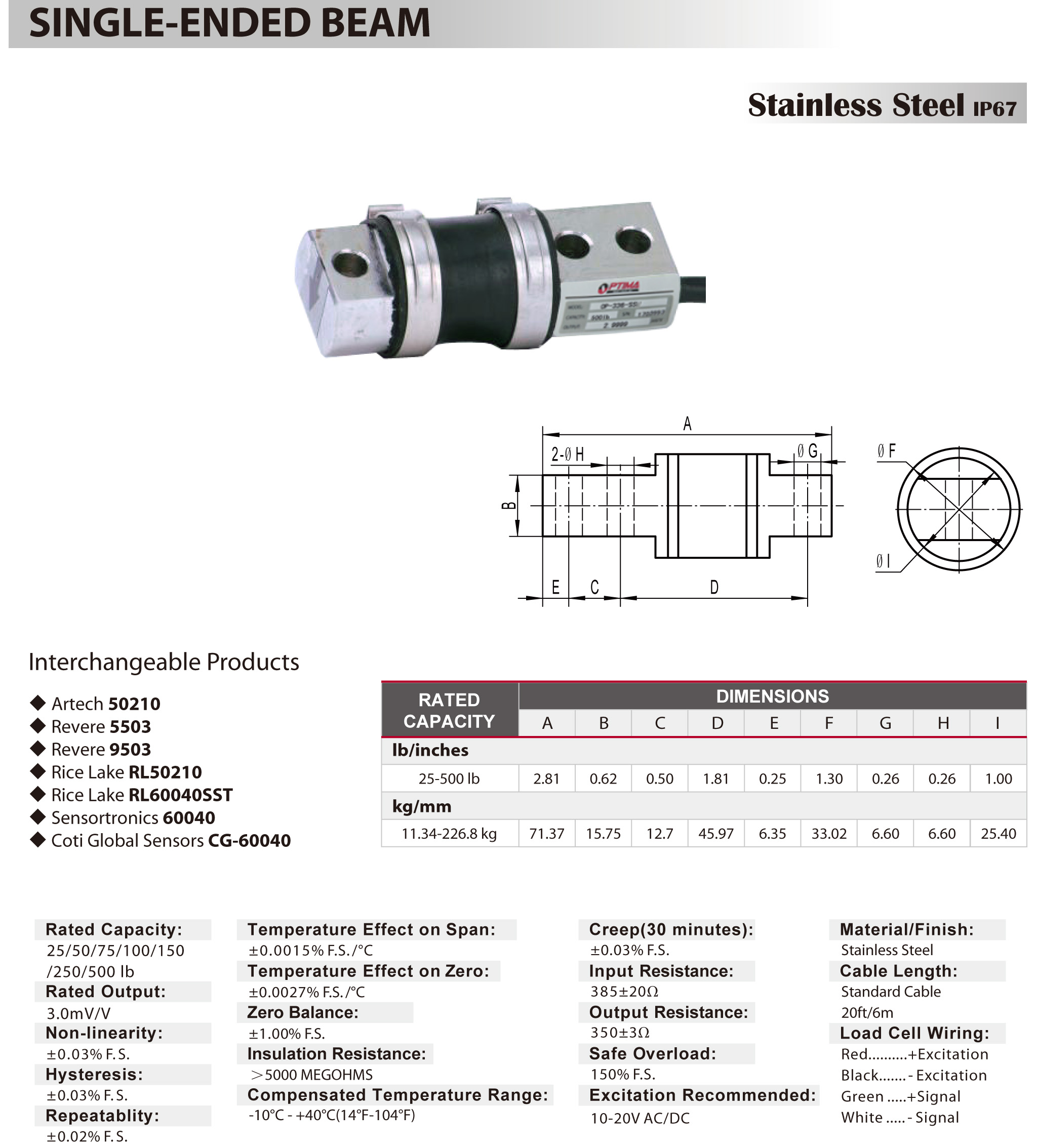

Optima OP-336-SS 500 Stainless Steel Single Ended Beam Load Cell
Features
- 500 lb capacity rating
- Stainless steel construction
- IP67 rating
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
Interchange
- Artech 50210
- Revere 5503
- Revere 9503
- Rice Lake RL50210
- Rice Lake RL60040SST
- Sensortronics 60040
- Coti Global Sensors CG-60040
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 500 lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 2.81 x 1.30 x 1.30 in
- Construction:
- Stainless steel
- IP Rating:
- 67
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 20 ft
- Manufacturer:
- Optima
- Model:
- OP-336-SS
