Optima OP-334-SSW 5K lb Stainless Steel Single Ended Beam Load Cell
Features
- 5K lb capacity rating
- Stainless steel construction
- Hermetically sealed
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
- IP67 rating
Interchange
- Cardinal SB10000S
- Cardinal SB20000S
- Cardinal SB2500S
- Cardinal SB5000S
- Rice Lake RLSB250
- Coti Global Sensors CG-SB250

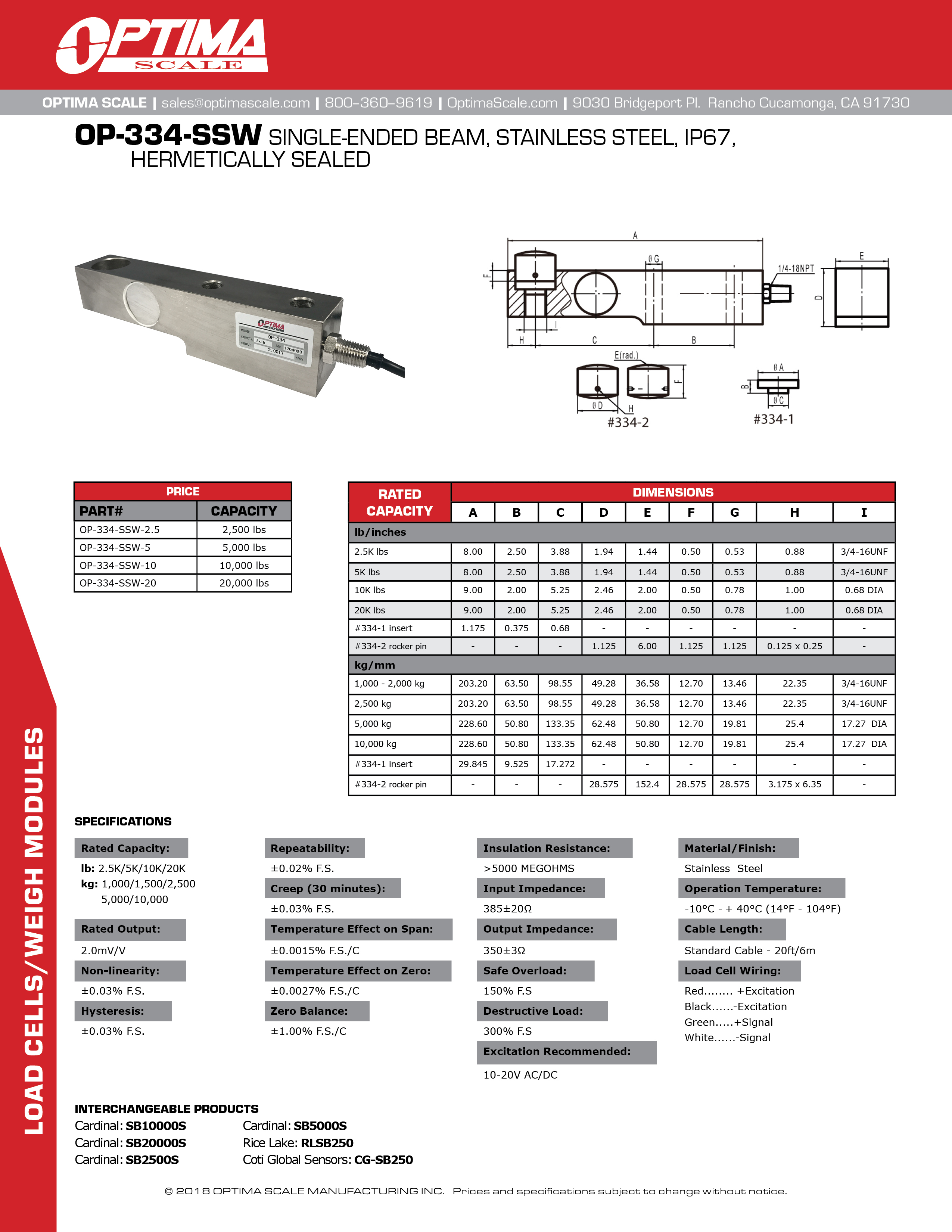

Documentation
1 year limited manufacturer's warranty
- Capacity:
- 5K lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 8.00 x 1.94 x 1.44 in
- Hole Threading:
- 3/4-16UNF
- IP Rating:
- 67
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 2.0 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 20 ft
- Manufacturer:
- Optima
- Model:
- OP-334-SSW
