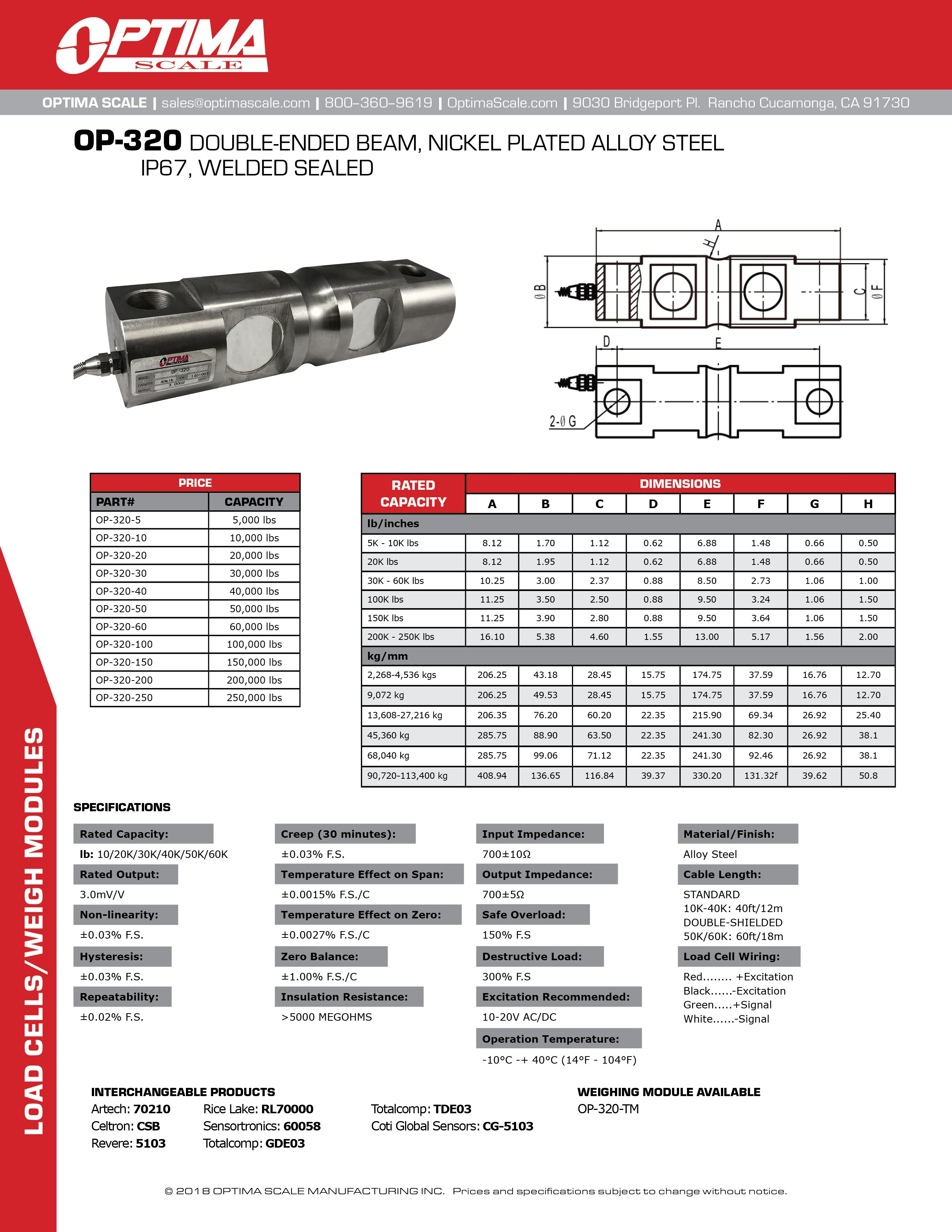

Optima OP-320 10,000 lb Alloy Steel Double Ended Beam Load Cell
Features
- 10,000 lb capacity rating
- Alloy steel construction
- Nickel Plated
- Welded sealed
- IP67 rating
- Load cell cable length 40 feet
- Safe overload up to 150% capacity
Interchange
- Artech 70210
- Celtron CSB
- Revere 5103
- Rice Lake RL70000
- Sensortronics 60058
- Totalcomp TDE03
- Coti Global Sensors CG-5103
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 10,000 lb
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 8.12 x 1.70 x 1.70 in
- Construction:
- Alloy steel
- Finish:
- Nickel plated
- IP Rating:
- 67
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Input Resistance:
- 700±10 ohms
- Output Resistance:
- 700±5 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 40 ft
- Manufacturer:
- Optima
- Model:
- OP-320
