Optima OP-316 50 kg Alloy Steel Single Ended Beam Load Cell
Features
- 50 kg capacity rating
- Alloy steel construction
- Hermetically sealed, ideal for hostile environment
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
Interchange
- First Weigh LC22
- Coti Global Sensors CG-LC22

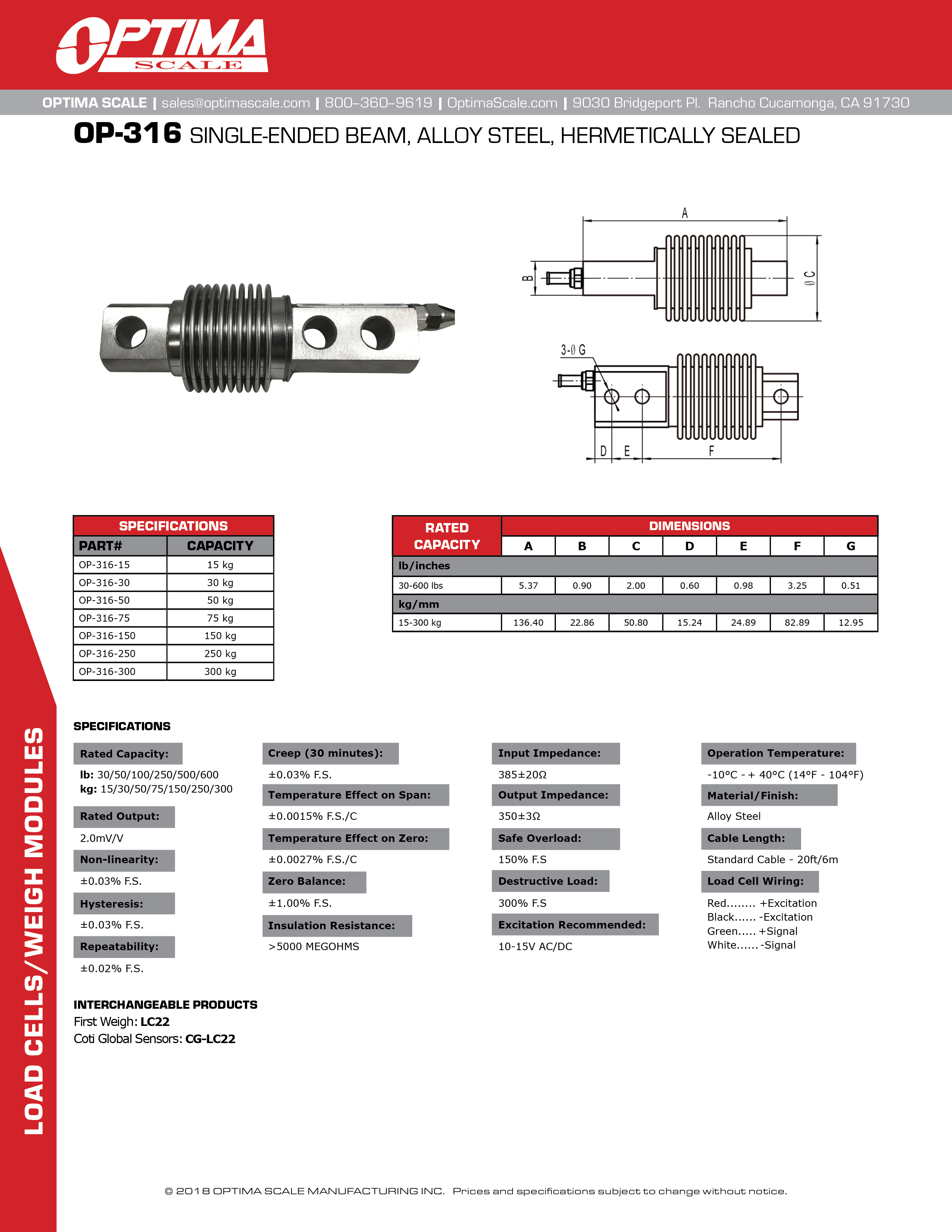

Documentation
1 year limited manufacturer's warranty
- Capacity:
- 50 kg
- Safe Overload:
- 150% capacity
- Repeatability:
- ±0.02 Full scale
- Operation Temperature:
- -10° C - +40° C
- Dimensions:
- 5.37 x 2.00 x 2.00 in
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 2.0 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- > 5000 megohms
- Cable Length:
- 20 ft
- Manufacturer:
- Optima
- Model:
- OP-316
