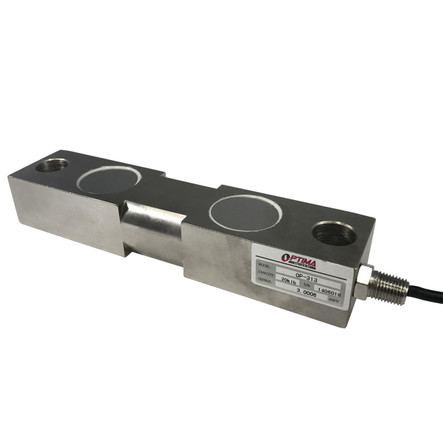

Optima OP-313 3,000 lb Double Ended Beam Load Cell
Features
- 3,000 lb capacity
- Alloy steel with nickle plating
- IP67 rated
- 2.0mV/V rated output
- 20 ft of load cell cable
- Safe overload of 150% capacity
Interchange
- Artech 70510
- Celtron DSR
- Revere 5203
- Rice Lake RL75016
- Sensortronics 65016
- Totalcomp GDE16
- Totalcomp TDE16
- Totalcomp DBS
- Coti Global Sensors CG-16

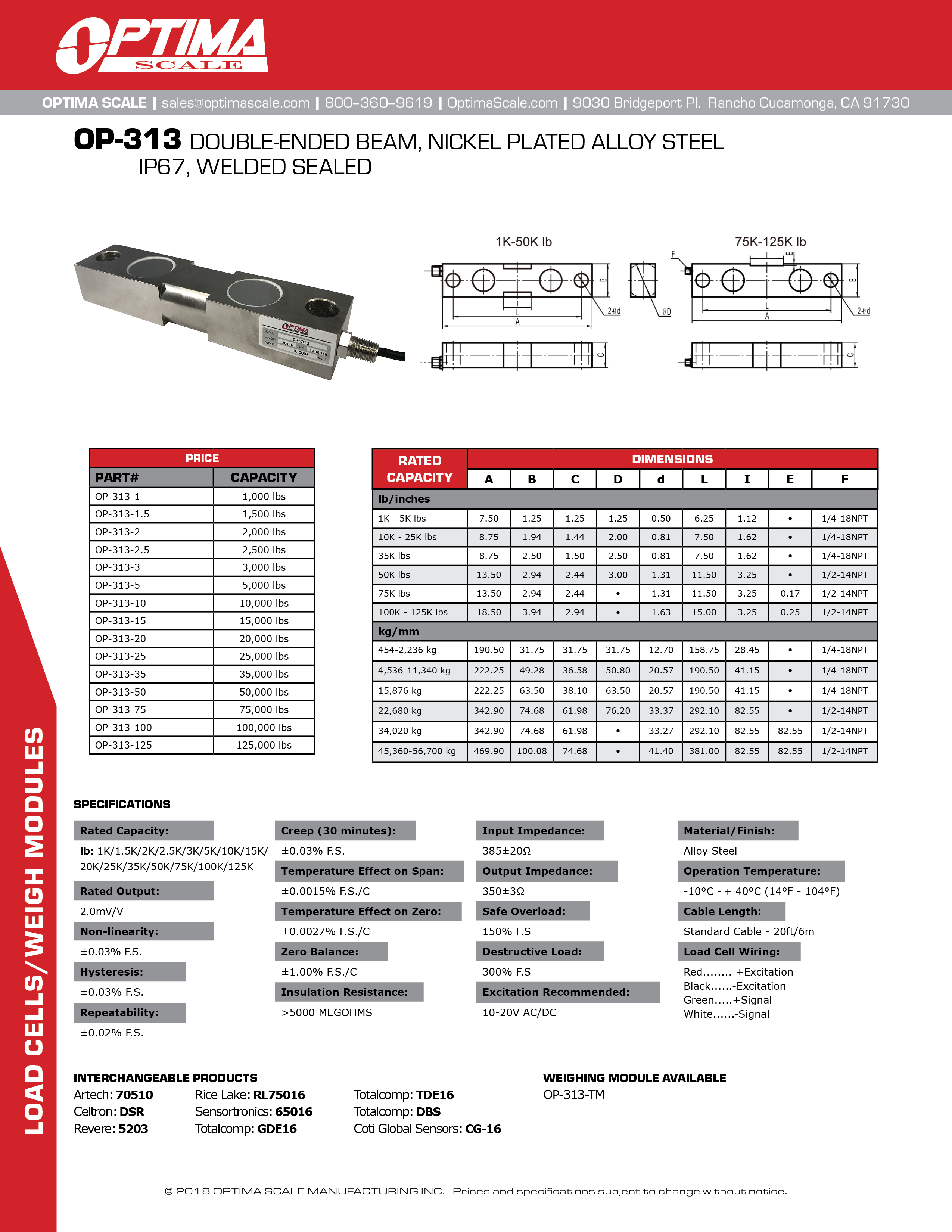

Documentation
1 Year Limited Manufactures Warranty
- Capacity:
- 3,000 lb
- Non-linearity:
- ±0.03% full scale
- Repeatability:
- ±0.02% full scale
- Creep (30 minutes):
- ±0.03% full scale
- Construction:
- Alloy steel
- Finish:
- Nickle plated
- Dimensions (W x H x D):
- 7.50 x 1.25 x 1.25 in.
- Hole Thread:
- 1/4-18NPT
- IP Rating:
- IP67
- Rated Output:
- 2.0 mV/V
- Input Resistance:
- 385 +/- 20 ohms
- Output Resistance:
- 350 +/- 3 ohms
- Cable Length:
- 20 ft
- Load Cell Wiring:
- Red = Excitation +, Black = Excitation -, Green = Signal +, White = Signal -
- Insulation Resistance:
- >5000 megohms
- Safe Overload:
- 150% full scale
- Excitation Reccommended:
- 10-20V AC/DC
- Brand:
- Optima
- Model:
- OP-313-3
