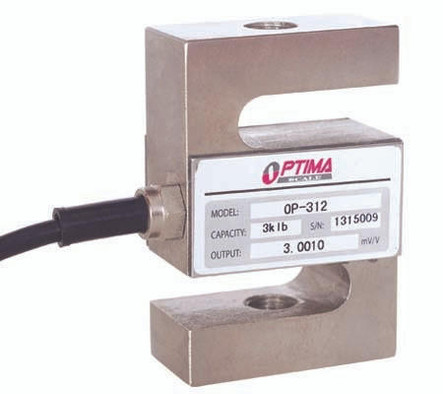

Optima OP-312-0.75 750 lb S-Beam Load Cell
Features
- 750 lb capacity rating
- Alloy steel construction with nickle plating
- IP67 rated
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
- Easy install
Common Applications
- OEM
- Tank Scales
- Suspended Scales
- Crane Scales
- Hopper Scales
Interchange
- Celtron STC
- Rice Lake RL20001
- Coti Global CGSB
- Sensortronics 60001
- Atech 20210
1 year limited manufacturer's warranty
- Manufacturer:
- Optima
- Model:
- OP-312-0.75
- Capacity:
- 750 lb
- Safe Overload:
- 150% capacity
- Height:
- 2.5 in
- Threading:
- 1/2-20UNF
- Construction:
- Alloy steel, nickle plated
- IP Rating:
- IP67
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350±10 ohms
- Output Resistance:
- 350±5 ohms
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
