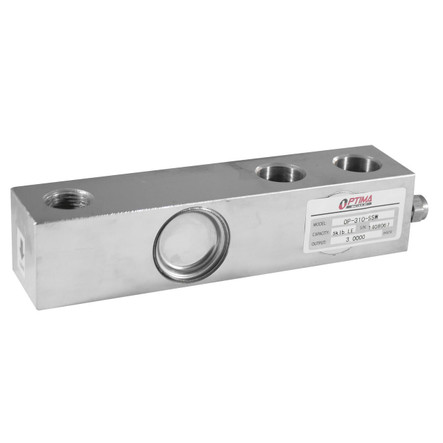

Optima OP-310-SSW-2.5 2500 lb Stainless Steel Single Ended Beam Load Cell
Features
- 2500 lb capacity rating
- Stainless steel construction
- Moisture-proof sealed, ideal for hostile environment
- IP68 rated
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
- Easy install
Common Applications
- OEM
- Floor Scales
- Tank Scales
Interchange
- Artech 2230310
- Revere 9123
- Celtron SQB SS
- HBM H35
- Rice Lake RL35023S
- Rice Lake RLH35
- Coti Global CG-23-SSW-03
- Transcell SBS
- Fairbanks 3-54786-1
- Sensortronics 65083S
1 year limited manufacturer's warranty
- Manufacturer:
- Optima
- Model:
- OP-310-SSW-2.5
- Capacity:
- 2500 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.12 in
- Threading:
- 1/2-20
- Construction:
- Stainless steel
- IP Rating:
- IP68
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 385±20 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
