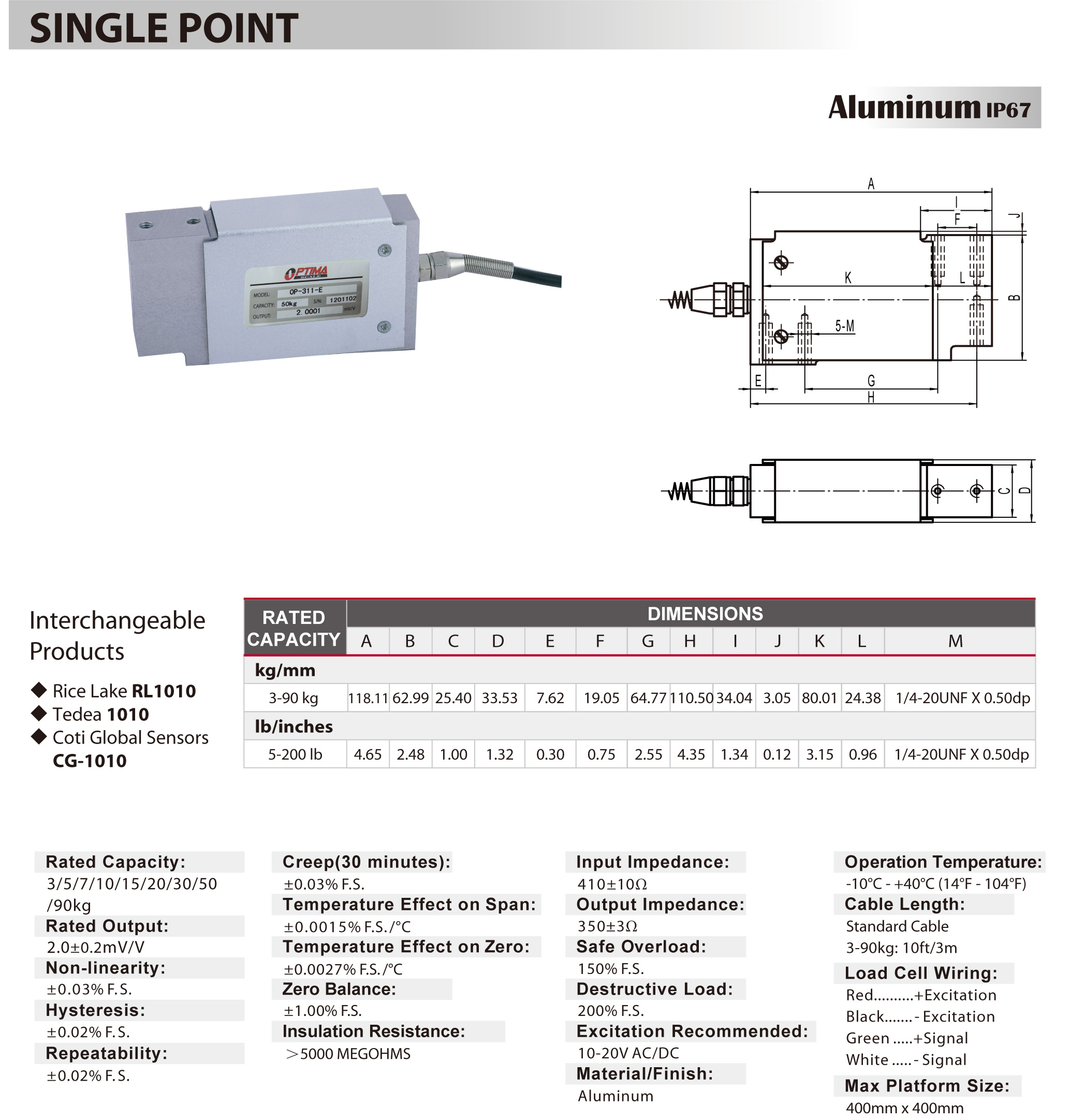

Optima OP-307 5 kg Single Point Aluminum Load Cell
Features
- 5 kg capacity rating
- IP Rating 67
- Aluminum construction
- Load cell cable length 10 feet
- Safe overload up to 150% capacity
Interchange Options
- Coti Global Sensors CG-1010
- Rice Lake RL1010
- Tedea 1010
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 5 kg
- Safe Overload:
- 150% capacity
- Dimensions:
- 4.65 x 2.48 x 1.32 in
- Hole Thread:
- 1/4-20UNF X 0.50dp
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Output:
- 2.0±0.2mV/V
- Input Resistance:
- 410±10ÃŽ©
- Output Resistance:
- 350±3ÃŽ©
- Insulation Resistance:
- >5000 megohms
- Cable Length:
- 10 ft
- Manufacturer:
- Optima
- Model:
- OP-307-5
