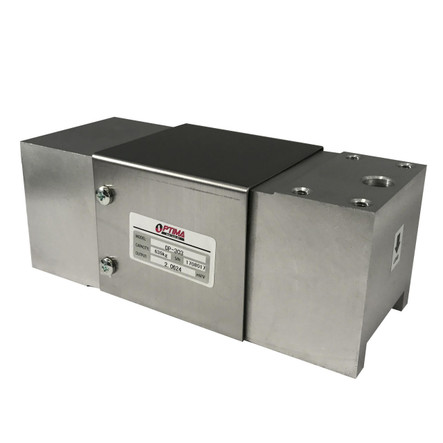

Optima OP-303 500 kg Single Point Aluminum Load Cell
Features
- 500 kg capacity rating
- IP Rating 67
- Aluminum construction
- Load cell cable length 20 feet
- Safe overload up to 150% capacity
Interchange Options
- Artech 60410
- CAS BCM
- Celtron LOC
- Coti Global Sensors CG-50
- Flintec PC42
- HBM PW12
- Revere 652
- Rice Lake RL1250
- Rice Lake RLPWM12
- Tedea 1250
- Transcell FAY

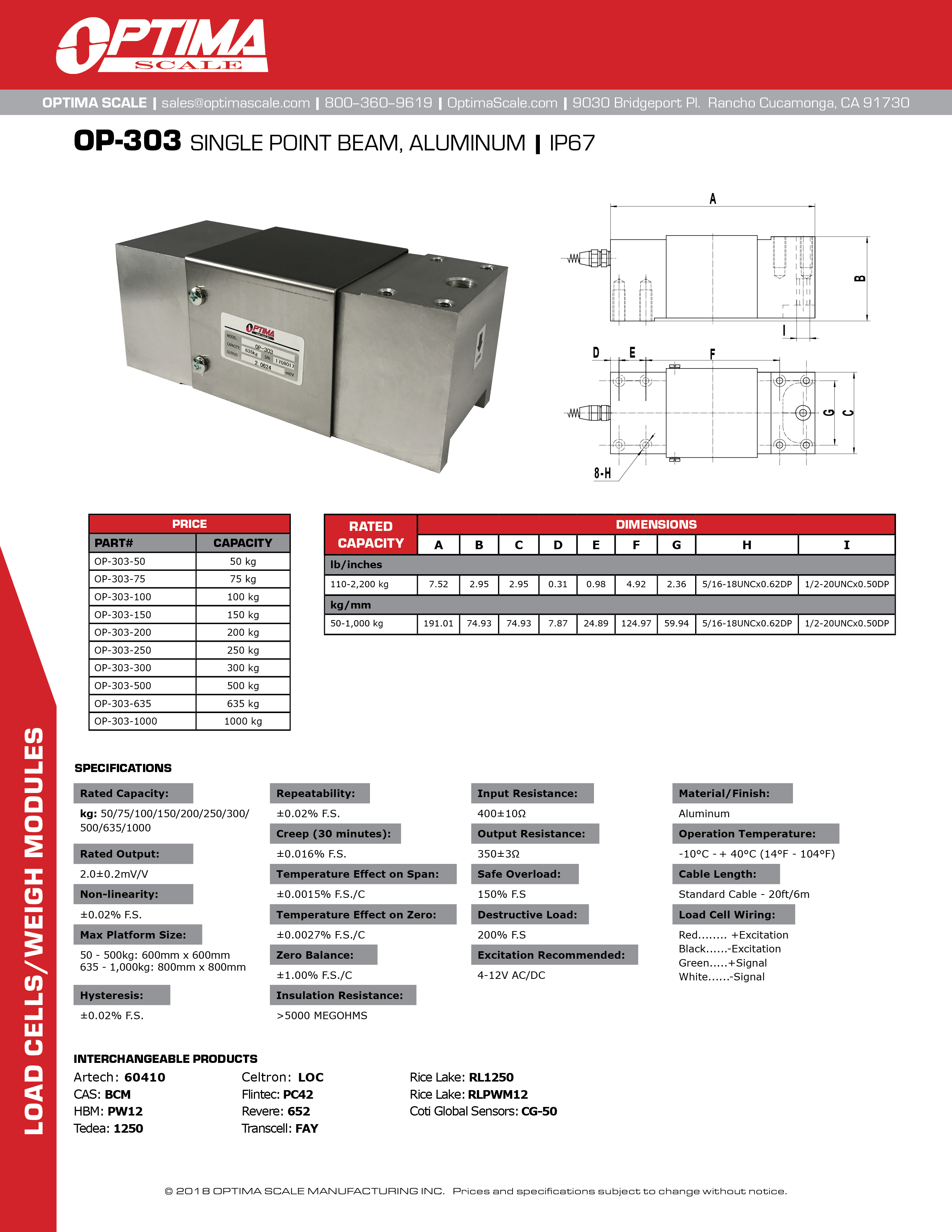

Documentation
1 year limited manufacturer's warranty
- Capacity:
- 500 kg
- Safe Overload:
- 150% capacity
- Dimensions:
- 7.52 x 2.95 x 2.95 in
- Hole Thread:
- 5/16-18UNCx0.62DP, 1/2-20UNCx0.50DP
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Output:
- 2.0±0.2mV/V
- Input Resistance:
- 400±10 ohms
- Output Resistance:
- 350±3 ohms
- Insulation Resistance:
- >5000 megohms
- Cable Length:
- 20 ft
- Manufacturer:
- Optima
- Model:
- OP-303-500
