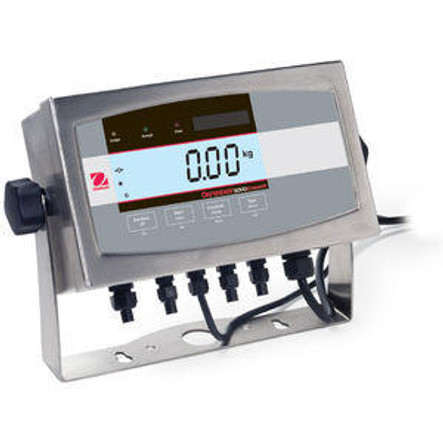

OHAUS T51XW Digital Indicator, NTEP

MSRP: $812.00
$559.96
(Save $252.04)
Part #:
83999840
Availability:
Typically ships in 1-2 days

Discontinued by manufacturer. Recommend OHAUS TD52XW Indicator

The OHAUS T51XW indicator provides exceptional value for the cost. The housing is stainless steel and has a NEMA 4X / IP66 protection rating making it suitable for use in washdown or high moisture environments. The backlit LCD display is easy to read in poor lighting conditions. It is powered by a hardwired AC cord or for portable applications an optional NiMH battery is available.  It comes standard with a bi-directional RS232 interface for communication with external devices. GMP/GLP data ouptut with date, time, user ID, project ID, and scale ID is supported.  Additional communication options include a second RS232 interface or a RS485/422 interface. External devices can also be controlled with an optional AC or DC relay.  Weighing applications include weighing modes for general weighing, parts counting, checkweighing, percent weighing, dynamic/animal weighing, and display hold. It is able to power up to (8) 350 ohm load cells, has a maximum displayed weight resolution of 30,000 divisions and the NTEP certified weight resolution is 10,000 divisions. With the press of a button the weighing resolution can be multiplied by 10x in weighing mode.  Operator access to certain menus can be limited and lockouts for individual key functions can also be configured. The Ohaus T51XW is a great fit for use with platform scales and bench scales in high moisture environments.

Features

  • Stainless steel housing
  • Backlight LCD display
  • NTEP certified, Measurement Canada approved
  • Up to 30,000 displayed resolution
  • Up to 10,000 NTEP displayed resolution
  • Up to 300,000 counting resolution
  • Powers up to (8) 350 ohm load cells
  • Checkweighing lights for under, accept and over
  • Multiple weighing units

Weighing Modes

  • General Weighing
  • Parts Counting
  • Percent Weighing
  • Animal/Dynamic
  • Checkweighing
  • Display hold
1 year manufacturer's warranty
Capacity:
Up to 999,950 (lb or kg)
NTEP:
Yes
Maximum Displayed Weight Resolution:
1:30,000
Maximum NTEP Approved Weight Resolution:
1:10,000
Maximum Counting Resolution:
300,000
Minimum Average Piece Weight:
0.1 d
Weighing Units:
kg, g, lb, lb-oz, oz, metric tonnes, custom unit
Housing:
Stainless Steel
Display:
LCD with white backlight
Checkweighing Indicators:
Yes (Red-Over) (Green - Accept) (Yellow - Under)
Controls:
4 button, raised tactile
Load Cell Excitation:
5 VDC
Load Cell Drive:
Up to 8 x 350 ohm
Load Cell Input Sensitivity:
Up to 3 mV/V
Stabilization Time:
<2 seconds
Auto-Zero Tracking:
Off, 0.5d, 1d, 3d
Zeroing Range:
+/-2% or +/-100% of capacity
Communication:
(1) RS232 interface standard & External Tare Input included
Operating Temperature Range:
14°F to 104°F / -10°C to 40°C
Power:
100-240 VAC/ 50-60 Hz
Housing Dimensions:
10.3" x 3" x 5.8" / 262 x 76 x 149 mm
Weight:
7.7 lb / 3.5 kg
Brand:
OHAUS
Model:
T51XW
