Discontinued and replaced with Ohaus PX623/E

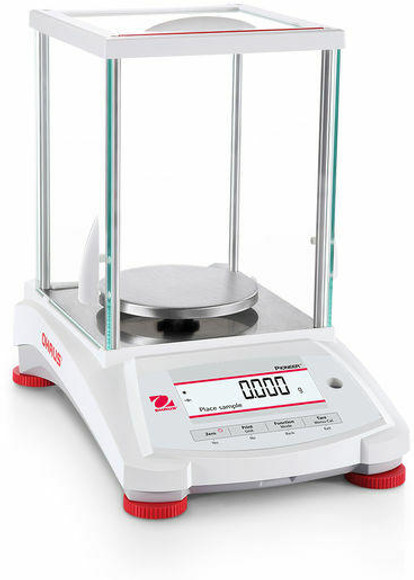

OHAUS Pioneer PX series precision balances feature high-performance weighing, versatility and affordability designed to work for laboratory, education and industrial applications. The Pioneer PX is affordably priced, intuitively designed for intelligent operation with a second line display for additional information, and USB and RS-232 connectivity for easy communication. An integrated static removal bar provides additional peace of mind ensuring accurate weighing results. The die-cast metal base, ABS housing and stainless steel weighing pan come together to construct a durable balance intended for constant use and demanding environments. Pioneer PX features 5 weighing modes, supports 4 languages and includes many additional standard features to provide an accurate and reliable solution for professional weighing.
PX models ending in "/E" feature external calibration whereas models without "/E" feature internal calibration.
Features
- Large bright LCD display with additional 2nd line for information and instructional prompts
- Integrated static removal bar on top of draft shield provides a convenient grounding location
- Durable construction with die-cast metal base, ABS housing and stainless steel pan
- Affordable and competitive precision balance fits almost any budget
- External span and linear calibration with test weights
- Easy to operate requiring very little training or experience
- Supports multiple weighing applications and weighing units
- Integrated weigh below hook for under balance weighing
- Intelligently designed draft shield removes easily for cleaning
- Environmental filters to adjust balance sensitivity
- RS232 and USB interface allows connection to PC, printers and other devices
- Integrated security bracket helps prevent theft
- User selectable communication and print settings
- Mechanical and software overload/underload protection
- Real Time and GMP/GLP compliant data with configurable print settings
- Stability, overload and underload indicators
- Supports 4 languages
Weighing Applications
- Weighing
- Parts counting
- Percent weighing
- Density determination
- Dynamic/animal weighing
Documentation
- Capacity:
- 520 g
- Readability:
- 0.001 g
- Repeatability (Std Dev):
- 0.001 g
- Linearity:
- 0.002 g
- Calibration:
- External calibration
- Stabilization Time:
- 2 seconds
- Pan Size:
- 4.72 in / 120 mm
- Weighing Units:
- mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal, Newton, ozt, custom unit
- Construction:
- Plastic housing, stainless steel pan
- Communication:
- RS232 and USB
- Display Type:
- Backlit LCD
- Draft Shield:
- Glass panels, 3 doors
- Overall Dimensions (W x H x D):
- 8.2 x 12.6 x 12.2 in / 209 x 321 x 309 mm
- Weight:
- 10 lb
- Operating Temperature:
- 50° to 86° F / 10° to 30° C at 10% to 80% relative humidity, non-condensing
- Power:
- AC adapter
- Brand:
- OHAUS
- Model:
- PX523/E
