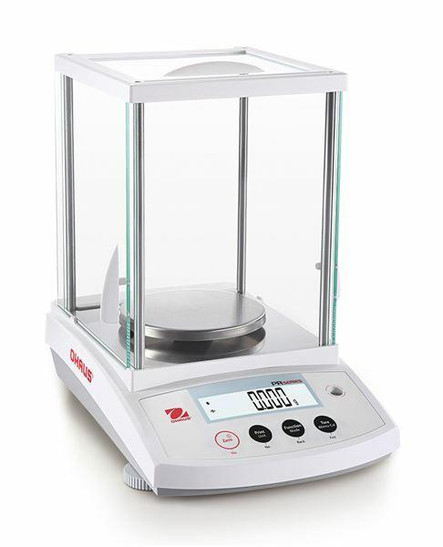

OHAUS PR Series balances offer NTEP certification and Measurement Canada approval for legal-for-trade applications that require it. These are ideally suited for pharmacies, jewelers and medicinal suppliers that often require precision weighing with the added NTEP certification. PR Series precision balances offer affordability, user-friendly operation and durability all in one package. Three weighing applications are supported simplifying the user experience by stripping out unnecessary functions.
Virtually zero training is required to begin using PR series precision balances. A simple four button keypad, intuitive navigation and a large bright display make operation a breeze. The all glass draft shield has two side doors and a top door for convenient access and makes cleaning much simpler. Connect easily to point-of-sale systems (POS), computers and printers using the standard RS232 communication port. Operators can choose what data to print including product IDs, user IDs, weight and more.
Features
- NTEP certified Class II
- Measurement Canada approved for legal-for-trade applications
- Designed for work places that require NTEP certification such as pharmacies, jewelers and more
- User-friendly operation with simple 4 button keypad and intuitive navigation
- Supports 3 essential weighing applications including general weighing, parts counting and percent weighing
- RS232 communication ports for connection to point-of-sale systems, PCs and printers
- Durable design holds up to demanding and consistent use
- Glass draft shields features 2 sliding doors and top sliding door for easy access
- Removable stainless steel pan makes cleaning a breeze
- Large LCD display with bright white backlight
- User selectable data printing and format
- External calibration with user specified span calibration points
- Auto tare and auto dimming
- Software and calibration lock
- Integral security lock slot (for Kensington style locks)
- Up-front level indicator helps ensure balance is level
- Durable construction with ABS housing and stainless steel weighing pan
- Supports multiple weighing units
Applications
- Weighing
- Parts counting
- Percent weighing
Documentation
- Capacity:
- 520 g
- Readability:
- 0.01 g
- Certified Readability (e):
- 0.01 g
- Repeatability (Std Dev):
- 0.001 g
- Linearity:
- 0.002 g
- NTEP:
- Yes
- Class:
- II
- Calibration:
- External
- Stabilization Time:
- 2 s
- Pan Size:
- 4.72 in / 120 mm
- Weighing Units:
- g, mg, ct, grain, oz, ozt
- Construction:
- Plastic housing, stainless steel pan
- Communication:
- RS232
- Display Type:
- Backlit LCD
- Draft Shield:
- Glass panels, 3 doors
- Overall Dimensions (W x H x D):
- 7.9 x 12.5 x 11.9 in. / 201 x 317 x 303 mm
- Weight:
- 10.0 lb / 4.5 kg
- Operating Temperature:
- 14 °F to 140 °F / -10 °C to 60 °C at 10% to 90% relative humidity, non-condensing
- Power:
- Power input: 100-240V ~ 200mA 50-60Hz 12-18VA Power output: 12 VDC 0.5A
- Brand:
- OHAUS
- Model:
- PR522N/E
