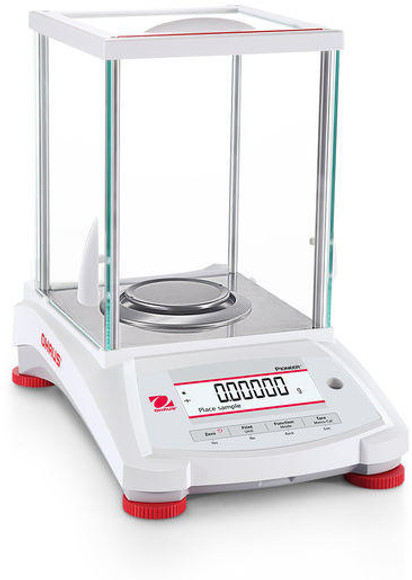

The Pioneer PX225D combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The dual range reads to 0.01 mg from 0 to 82 grams, and 0.1 mg from 82 - 229 grams. The PX225D is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication. Semi-automatic internal calibration, or InCal, performs calibrations using Pioneer's integrated calibration system and weighing standards. This feature helps ensure consistent, accurate and reliable weighing results.
Features
- Dual Range Capacities
- Large bright LCD display with additional 2nd line for information and instructional prompts
- Integrated static removal bar on top of draft shield provides a convenient grounding location
- Durable construction with die-cast metal base, ABS housing and stainless steel pan
- Affordable and competitive analytical balance fits almost any budget
- InCal - Semi-automatic internal calibration
- Optional external span and linear calibration with test weights
- Easy to operate requiring very little training or experience
- Supports multiple weighing applications and weighing units
- Integrated weigh below hook for under balance weighing
- Intelligently designed draft shield removes easily for cleaning
- Environmental filters to adjust balance sensitivity
- RS232 and USB interface allows connection to PC, printers and other devices
- Integrated security bracket helps prevent theft
- User selectable communication and print settings
- Mechanical and software overload/underload protection
- Real Time and GMP/GLP compliant data with configurable print settings
- Stability, overload and underload indicators
- Supports 4 languages
Applications
- Weighing
- Parts counting
- Percent weighing
- Density determination
- Dynamic/animal weighing
2 year manufacturer's limited warranty
- Capacity:
- 220 g
- First Capacity Range:
- 82 g
- Second Capacity Range:
- 220 g
- Readability:
- 0.00001 g
- First Readability Range:
- 0.00001 g
- Second Readability Range:
- 0.0001 g
- Repeatability (Std Dev):
- 0.00003 g / 0.0001 g
- Linearity:
- 0.0001 g
- Calibration:
- Internal calibration or external Calibration
- Stabilization Time:
- 10 s
- Pan Size:
- 3.15 in / 80 mm
- Weighing Units:
- mg, g, ct, oz, dwt, tical, tola, mommes, baht, grain, mesghal, Newton, ozt, custom unit
- Construction:
- Plastic housing, stainless steel pan
- Communication:
- RS232
- Display Type:
- Backlit LCD
- Draft Shield:
- Glass panels, 3 doors
- Overall Dimensions (W x H x D):
- 8.2" x 12.6" x 12.2" / 172 x 131 x 205 mm
- Weight:
- 10.0 lb / 4.5 kg
- Operating Temperature:
- 50° to 86° F / 10° to 30° C at 10% to 80% relative humidity, non-condensing
- Power:
- AC adapter
- Brand:
- OHAUS
- Model:
- PX22D
