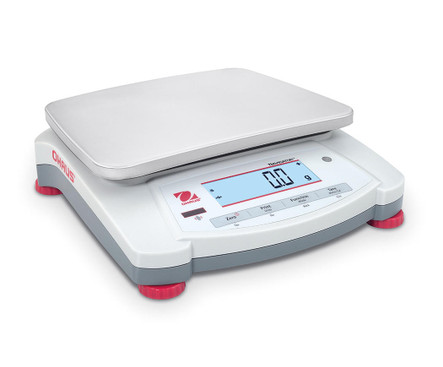

OHAUS Navigator NVT2200 Portable Balance, 2200 g x 1 g

MSRP: $476.00
$314.16
(Save $161.84)
Part #:
30456418
Availability:
Typically ships in 1-2 days

The Navigator NV series from Ohaus is a rugged balance fit for many general weighing applications. The newly redesigned model offers improved readability and accuracy while remaining at a competitive price point. The new Navigator is perfect for applications in education, industrial use, and even in the laboratory.

Operating the NV is fast and accurate with a stabilization time under one second which helps improve efficiency, productivity, and throughput. The touchless sensor makes it even easier to perform everyday tasks like zeroing or taring with a mere wave of a hand. Each NVT features an overload safeguard system that can endure loads up to four times the rated capacity, ensuring the protection of your investment. Additionally, an integrated shipping lock protects the load cell during transit or storage.

The new Ohaus Navigator series features general weighing applications, parts counting, percent weighing, and checkweighing functions. A stainless steel pan makes cleaning and maintaining your balance a breeze.

Features

  • Ultra-fast stabilization times in less than 1 seconds
  • Mechanical and software overload protection up to 400% above rated capacity
  • User-selectable communication and print settings
  • Transportation lock and calibration lock switch
  • Touchless infrared (IR) sensor allow hands free operation including tare
  • Large highly-visible backlit LCD display
  • Durable ABS plastic housing and stainless steel weighing pan
  • Integrated up-front level sensor ensures proper setup
  • Optional connectivity of RS232, USB or Ethernet (available as accessories)
  • Multiple weighing applications and weighing units
  • Includes AC adapter with optional battery operation (4 C batteries not included)
  • Convenient compact and portable design
  • Integral security bracket for help preventing loss or theft
  • Low battery indicator
  • Automatic shut-off saves power
  • User selectable backlight settings

Applications

  • Weighing
  • Parts Counting
  • Percent Weighing
  • Checkweighing

Documentation

Ohaus NVT2200 Datasheet Ohaus NVT2200 Manual

2 year manufacturer's limited warranty
Capacity:
2200 g
Readability:
1 g
Repeatability:
1 g
Linearity:
2 g
Pan Size:
9.1" — 6.9 " / 230 mm — 174 mm
Weighing Units:
g, kg, N, oz, ozt, dwt, lb, lb:oz, ct, grain
Construction:
Plastic housing, stainless steel pan
Calibration:
External
Stabilization Time:
<1 s
Communication:
RS232, USB, or Ethernet (optional as accessories)
Display Type:
Backlit LCD
Overall Dimensions (L x W x H):
9.5" — 9.8" — 2.9" / 240 mm — 250 mm — 74 mm
Power:
AC adapter (included) or 4 C batteries (not included)
Operating Temperature:
50° to 104°F, 85% RH, non-condensing
Brand:
OHAUS
Model:
NVT2200
