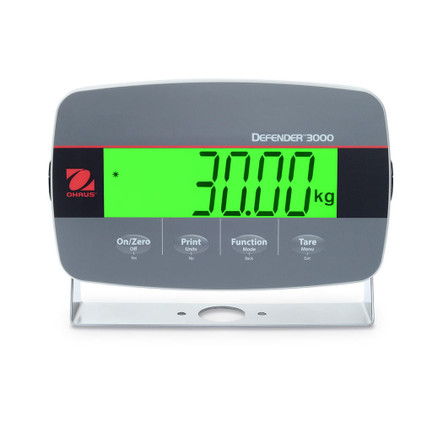

The OHAUS i-DT33P digital indicator is a high quality yet economical solution for basic industrial applications. It's capable of performing general weighing, counting, check weighing, and totalization. A new unique feature of the Defender 3000 indicator is the color changing backlight which provides a vivid status indication during check weighing applications. The i-DT33P is NTEP approved class III for use in legal for trade applications. It also includes standard RS-232 serial communication and offers the option for USB and Ethernet communication through additional accessories.
Features
- Hard wire connection through cord grip for connecting to any scale base
- ABS housing, powder coated steel mounting bracket
- IP54 rated
- Large backlit LCD display with color changing prompts for check weighing
- NTEP certified, Measurement Canada approved
- External calibration function with zero calibration, span calibration, and three point linearization calibration
- Up to 30,000 displayed resolution
- Up to 1:6,000 NTEP and Measurement Canada displayed resolution
- Powers up to (6) 350 ohm load cells
- Interface includes RS-232 communication
- Optional communication includes USB and Ethernet through accessories (not included)
Applications
- General Weighing
- Parts Counting
- Check Weighing
- Totalization
Documentation
Defender 3000 DT33P Indicator Data Sheet Defender 3000 DT33P Indicator Manual
1 year manufacturer's warranty
- NTEP:
- Yes
- Maximum Displayed Resolution:
- 1:30,000
- Maximum NTEP Approved Resolution:
- 1:6,000
- Weighing Units:
- kg, lb, lb-oz, g, metric ton
- Display:
- Color changing backlit LCD
- Checkweighing Indicators:
- Green, Yellow, and Red backlight
- Controls:
- 4 membrane function keys
- Load Cell Excitation:
- 5 VDC
- Load Cell Drive:
- Up to 6 x 350 ohm
- Load Cell Input Sensitivity:
- Up to 3 mV/V
- Stabilization Time:
- Within 1 second
- Auto-Zero Tracking:
- Off, 0.5d, 1d, or 3d
- Zeroing Range:
- +/-2% or +/-100% of capacity
- Communication:
- RS232
- Optional Communication through Accessories:
- USB or Ethernet
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Standard Power Supply:
- 100-240 VAC / 50/60 Hz Universal Power Supply
- Additional Options for Power Supply:
- C cell battery or optional internal rechargeable battery (both not included)
- Housing Dimensions (with bracket):
- 9.9 x 7.0 x 5.3 in
- Weight:
- 3.1 lb / 1.4 kg
- Brand:
- OHAUS
- Model:
- i-DT33P
