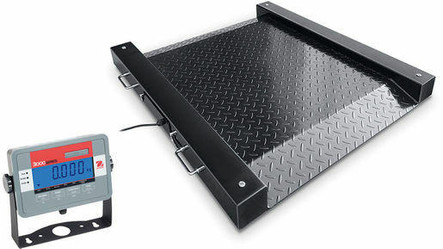

OHAUS DFD series offers a high quality drum scale solution for applications such as check weighing. counting, accumulation, and general weighing. The base features IP67 rated load cells and an IP65 rated junction box for superior protection against water and corrosive materials. The included T32M indicator offers a wide range of operation capabilities through 4 raised tactile buttons.
Features
- 500 lb capacity and 0.1 lb readability
- 30 inch x 30 inch weighing platform
- Platform is easily portable with stainless steel handles and integrated high-density polyurethane wheels
- Cord storage cleats allow for the extra cord to be wrapped up safely before transporting
- T32M indicator with ABS housing and 4 button keypad
- Indicator features large backlit LCD display with 1" high digits
- Wall mount bracket included with indicator
- Powered by AC adapter (included)
- Built-in bi-directional RS232C communication interface
- Deck is carbon painted steel with a tread surface
- Four IP67 nickel plated alloy Steel shear beam load cells
- IP65 die cast aluminum junction box with 19.8' length indicator cable
- Four ball-in-cup swiveling feet with top-access leveling adjustment for easy installation
Applications
- General Weighing
- Accumulation
- Check Weighing
- Parts Counting
- Dynamic/Animal Weighing
Documentation
1 year manufacturer's limited warranty
- Capacity:
- 500 lb
- Readability:
- 0.1 lb
- Load Cell:
- 4 — IP67 Nickel Plated Alloy Steel Load Cells, Shear Beam
- Load Cell Feet:
- 4 — Swivel Design, Screw-In, Carbon Steel with Rubber Bottom Cap, Top Adjustable
- Junction Box:
- IP65, Die-cast Aluminum, with 6 m (19.8 ft) Indicator Cable
- Maximum Central Load:
- 100% of maximum capacity
- Indicator:
- T32M
- Display:
- 1 in / 25 mm high, 6-digit, 7-segment bright white backlit LCD
- Keyboard:
- 4-button mechanical
- Functions:
- Parts Counting, Dynamic, Checkweighing, Weight Accumulation
- Stabilization Time:
- 2 seconds or less
- Auto-Zero Tracking:
- Off, 0.5, 1 or 3d
- Zeroing Range:
- 2% or 100% of capacity
- Communication:
- RS232C bi-directional
- Weighing Units:
- lb, kg
- Platform Construction:
- Painted Carbon Steel, Treaded Surface, Fixed Top Plate
- IP Rating:
- IP67 for shear beam load cells, IP65 for junction box
- Indicator Construction:
- ABS housing
- Platform Dimensions (W x H x D):
- 30" x 30"
- Indicator Dimensions (W x H x D):
- 7.8" x 1.8" x 5.2"
- Weight:
- 101 lb
- Operating Temperature:
- 50° to 104°F / 10° to 40°C
- Brand:
- OHAUS
- Model:
- DFD32M500ES
