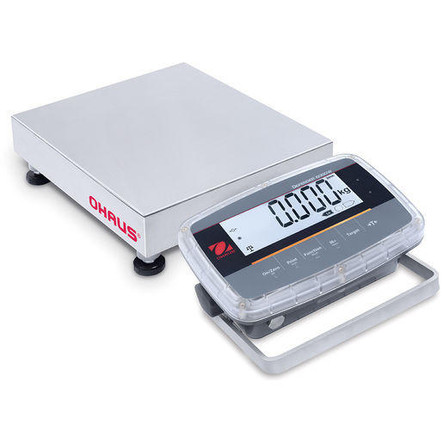

OHAUS Defender 6000 washdown bench scales are specifically designed for use in the harshest of environments, with stainless steel construction, water-proof indicators and sealed load cells. They are an ideal weighing solution for food production, chemical, pharmaceutical and manufacturing applications. The polycarbonate indicator features an IP68 immersion/IP69K washdown protection rating, knife-proof numeric touch keypad, and up to 1,600 hours of battery life. Defender 6000 bench scales are NTEP-approved and ANSI/NSF-certified.
Features
- Low profile design
- 304 stainless steel base and column
- IP67 stainless steel load cell
- NTEP and Measurement Canada approved Class III/IIIL
- Up to 25,000 displayed resolution
- Up to 1,600 hours of continuous operation with backlight off, one set of batteries allows months of use
- Tool free access to battery compartment
- Durable polycarbonate indicator with knife-proof numeric keypad
- Red, green, and yellow LED checkweighing lights
- Menu password protection
- Key lock
- Customizable environment and auto print settings
- GMP/GLP output with time/date
- Auto shutoff
- Auto tare
- Overload/underload indicators
- Stability indicator
Communication
- Optional IR data communication kit
Applications
- Weighing
- Parts Counting
- Checkweighing
- Check Counting
- Dynamic weighing/Display hold
- Percentage Weighing
Compliance
- NTEP Approved CC 20-043 Class III, Platform CC 18-077 Class III
- Measurement Canada approved AM-6159, Platform AM-6107
- Food Safety ANSI/NSF 169 (indicator only)
- Indicator Ingress Protection IP68 and IP69K, Base IP67
- Product Safety CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
- CAS, CE
- WEE, RoHS
Documentation
Ohaus Defender 6000 Scale Datasheet Ohaus Defender 6000 Indicator Datasheet
Ohaus Defender 6000 Indicator Manual Ohaus Defender 6000 Indicator Instruction Guide
- Capacity:
- 5 lb
- Readability:
- 0.0002 lb
- Approved Readability:
- 0.001 lb
- Linearity:
- ± 2 divisions
- NTEP:
- Yes
- NTEP CC Indicator:
- 20-043
- NTEP CC Base:
- 08-031
- NTEP Class:
- lll
- Food Safety Approvals:
- ANSI/NSF 169
- Maximum Displayed Resolution:
- 1:25,000
- Maximum Approved Resolution:
- 1:5000
- Internal Resolution:
- 1,000,000 counts
- Weighing Units:
- Kilogram, Gram, Pound, Ounce, Pound: Ounce
- Display:
- 6-digit, 7-segment LCD display with white backlight, 1.8" high digits
- Checkweighing Indicators:
- 3 color (red, green, yellow)
- Controls:
- 6 function mechanical keys
- Indicator IP Rating:
- IP68/IP69K
- Load Cell IP Rating:
- IP67
- Typical Stabilization Time:
- 1 seconds or less
- Zeroing Range:
- +/-2% or +/-100% of capacity
- Communication Included:
- None
- Optional Communication:
- Infrared (IR) communication kit
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Power:
- 6 x D type batteries
- Battery Life Expectancy:
- Up to 1,600 hours of continuous operation with backlight off, time varies with backlight on
- Platform Dimension (WxD):
- 10" x 10"
- Weight:
- 22.1 lb
- Brand:
- OHAUS
- Model:
- i-D61PW2WQS5
