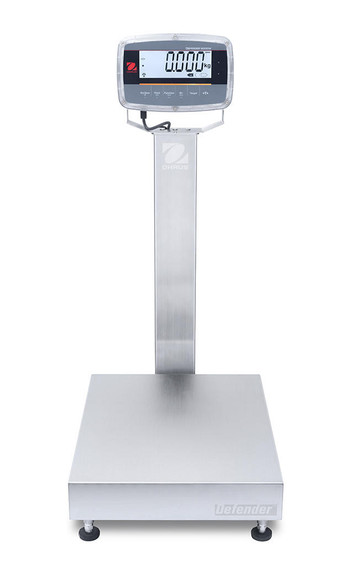

The Ohaus i-D61PW150K1L7 extreme washdown bench scale is specially designed for the harshest of environments. It is an ideal solution for industries such as food, chemical, and pharmaceutical production, processing, and packaging. The polycarbonate indicator carries an IP68 immersion/IP69K washdown protection rating, a knife-proof numeric touch keypad to ensure the integrity of the buttons, and up to 1,600 hours of battery life. Additionally, the stainless steel construction of the weighing pan, load cell, and column provide increased durability and enable easy cleaning.
The i-D61PW150K1L7 carries a large variety of approvals and compliance ratings. (listed below) The most significant of these being the NTEP approval and the ANSI/NSF food safety approval.
Features
- 316 stainless steel hermetically-sealed load cell
- 316 stainless steel base
- Designed for use in the most extremely demanding washdown applications
- NTEP and Measurement Canada approved Class III/IIIL
- Up to 75,000 displayed resolution
- Up to 1,600 hours of continuous operation with backlight off, one set of batteries allows months of use
- Tool free access to the battery compartment
- Durable polycarbonate design
- Knife-proof numeric touch keypad
- Colored checkweighing LED, with red, green, and yellow lights
- Menu password protection
- Key lock
- Customizable environment and auto print settings
- GMP/GLP output with time/date
- Auto shutoff
- Auto tare
- Overload/underload indicators
- Stability indicator
Communication
- No communication included standard
- Optional IR data communication kit
Applications
- Weighing
- Parts Counting
- Checkweighing
- Check Counting
- Dynamic weighing/Display hold
- Percentage Weighing
Compliance
- NTEP Approved CC 20-043, CC 20-064, Class III/IIIL
- Measurement Canada approved AM-6159
- Food Safety ANSI/NSF 169
- Ingress Protection IP68 and IP69K
- Product Safety CAN/CSA C22.2 61010-1; UL61010-1; IEC/EN 61010-1
- CAS, CE
- WEE, RoHS
- USDA-AMS Accepted
Documentation
Ohaus Defender 6000 Scale Datasheet Ohaus Defender 6000 Indicator Datasheet
Ohaus Defender 6000 Indicator Manual Ohaus Defender 6000 Indicator Instruction Guide
- Capacity:
- 300 lb
- Readability:
- 0.02 lb
- Approved Readability:
- 0.1 lb
- Linearity:
- ± 2 divisions
- NTEP:
- Yes
- NTEP CC Indicator:
- 20-043
- NTEP CC Base:
- 20-064
- NTEP Class:
- lll, IIIL
- Measurement Canada Approved:
- Yes, AM-6159 Class lll, lllHD
- Food Safety Approvals:
- ANSI/NSF 169
- Maximum Displayed Resolution:
- 1:75,000
- Maximum Approved Resolution:
- 1:10,000
- Internal Resolution:
- 1,000,000 counts
- Weighing Units:
- Kilogram, Gram, Pound, Ounce, Pound: Ounce
- Display:
- 6-digit, 7-segment LCD display with white backlight, 1.8" high digits
- Checkweighing Indicators:
- 3 color (red, green, yellow)
- Controls:
- 6 function mechanical keys
- IP Rating:
- IP68/IP69K
- Typical Stabilization Time:
- 1.5 seconds or less
- Zeroing Range:
- +/-2% or +/-100% of capacity
- Communication Included:
- None
- Optional Communication:
- Infrared (IR) communication kit
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Power:
- 6 x D type batteries
- Battery Life Expectancy:
- Up to 1,600 hours of continuous operation with backlight off, time varies with backlight on
- Dimensions:
- 19.7" x 15.7" x 5.4"
- Column Height:
- 26.4"
- Weight:
- 50.1 lb
- Brand:
- OHAUS
- Model:
- i-D61PW150K1L7
