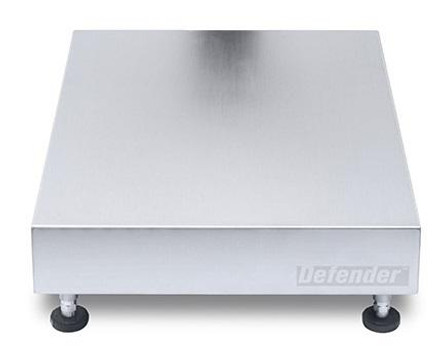

The Defender 6000 Series Extreme Washdown Base is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Features
- NTEP CC 20-064
- OIML R60/2000-DE1-06.02, R60/2000-NL1-12.50
- NSF Certified, supports HACCP systems
- 316 Stainless Steel Base
- IP68/IP69K hermetically-sealed load cell
- Four non-slip rubber adjustable feet
- 19.7" x 15.7" pan size
- EasyConnect module for fast connection to select Ohaus indicators
- 350 Ohm stainless-steel single point load cell
- Top pan included
Options/Accessories
- Wheel kit SS Defender Series, 30616409
- LC Extension Cable, 9 meters, 30424409
- Column Kit 10.2 in 316 SS, 30572908
- Column Kit 26.4 in 316 SS, 30572909
- Front Mounting kit 316 SS i-DT61PW, 30626654
- Cable Kit Extension for bass, 30429931
Documentation
1 year manufacturer's warranty
- Capacity:
- 100 lb
- Readability:
- 0.01 lb
- Certified Readability:
- 0.02 lb
- NTEP:
- Yes
- Safe Overload Protection:
- 1.5
- Rated Output:
- 2mV/V
- Load Cell Cable:
- 19.7 in / 0.5 m L x 6-wire
- Load Cell Excitation:
- 3.3-15V DC/AC
- IP Rating:
- IP68/IP69K
- Pan Size:
- 19.7" x 15.7"
- Overall Dimensions (W x D x H):
- 19.7" x 15.7" x 5.4"
- Construction:
- 316 stainless steel top and bottom frame
- Brand:
- OHAUS
- Model:
- i-D50K1L
