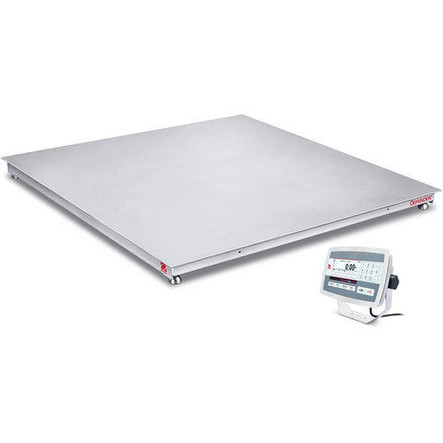

The Defender 5000 Series Floor Scales are tailored for industrial and commercial applications with advanced weighing capabilities. These scales boast durable construction to withstand heavy loads, ensuring dependable performance over time. The indicator offers multiple weighing modes including Counting, Checkweighing, Accumulation, Display Hold, and more. Ohaus Defender 5000 floor scales are available in sizes ranging from 3 x 3 ft to 4 x 4 ft, with capacities from 2,500 lbs to 5,000 lbs, providing NTEP certified 5,000e performance. The new stainless steel TD52XW series indicator enhances user experience with its user-friendly keypad, backlit display, and on-screen prompts. Four IP68 rated loadcells accompany the IP68 rated TD52XW indicator for unmatched performance in wet, washdown environments.
Features
- 3 ft. x 3 ft. platform
- 304 stainless steel sand-blasted flat surface platform
- IP68 TD52XW indicator
- Dot matrix LCD with white LED backlight, 256 x 80 pixels
- Four IP68 alloy steel shear beam load cells with top-adjustable height swiveling ball-in cup design
- AC Power (Included) Rechargeable Battery (Included)
- RS-232 interface included
- Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB Device, USB Host, Analog Output, 2 In/4 Out Discrete I/O
Applications
- Weighing
- Percent Weighing
- Piece Counting with Optimized APW
- Checkweighing/Checkcounting
- Filling
- Dynamic Weighing/Display Hold
Documentation
Ohaus Defender 5000 Data Sheet Ohaus Defender 5000 TD52 Indicator Manual
- Capacity:
- 2,500 lb / 1,250 kg
- Readability:
- 0.5 lb / 0.2 kg
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- 18-065A1
- Load Cell:
- 4 x IP68 alloy steel, shear beam
- Junction Box:
- IP68, 304 stainless steel, with 20’ EasyConnect cable
- Maximum Central Load:
- 160% of maximum capacity
- Safe Endload Capacity:
- 100% of maximum capacity
- Indicator:
- TD52XW
- Display:
- Dot matrix LCD with white LED backlight, 256 x 80 pixels
- Keyboard:
- 6 function, 5 soft keys, 12 alpha numeric membrane switches
- Stabilization Time:
- Within 2 seconds
- Auto-Zero Tracking:
- Off, 0.5 d, 1 d or 3 d
- Zeroing Range:
- 2% or 100% of capacity
- Communication:
- RS232
- Weighing Units:
- kg, g, lb, oz, T, t, Custom
- Platform Construction:
- 0.196 inch 304 Stainless Steel, flatsurface, fixed top plate
- IP Rating:
- IP68
- Indicator Construction:
- 304 stainless steel housing, 304 stainless steel bracket
- Platform Dimensions (W x H x D):
- 3 ft x 3 ft x 3.5 in.
- Indicator Dimensions (W x H x D):
- 12.6 x 10.2 x 3.1 in. / 320 x 260 x 80 mm
- Weight:
- 216 lb / 98 kg
- Operating Temperature:
- 14,° to 104,°F / -10,° to 40,°C
- Brand:
- OHAUS
- Model:
- i-DF52XW2500C1R
