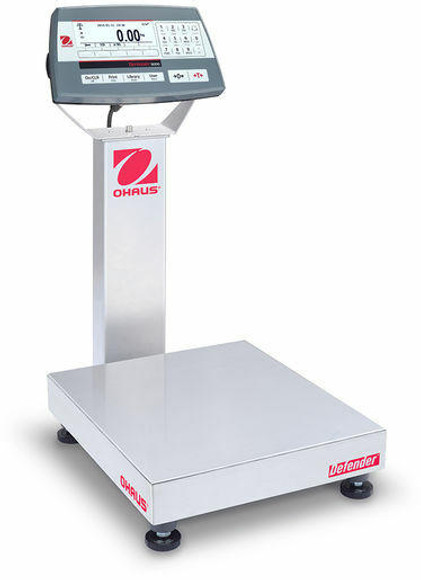

OHAUS Defender D52 bench scales represent the new standard in industrial weighing. A simplified user interface with on-screen prompts and a large bright dot matrix display provides a friendly operator experience with little training required. Durable construction including stainless steel platform, silver-painted column, and aluminum load cell allow for use in the most demanding industrial environments. D52 includes common industrial weighing modes and supports a 50,000 item library and 1,000 user profiles which can be downloaded and uploaded for easy set-up with the included Micro SD Card. Defender 5000 is GLP/GMP compliant with time and date for result traceability. Additional connectivity options include a second RS232, RS485 or USB device; Ethernet; and WiFi/ Bluetooth interfaces. Using the Analog Option (either 4-20mA or 0-10V) or the two In/four Out Discrete I/O, the new Defender 5000 indicator can also be used for systems including PLCs. D52 bench scales are NTEP and Measurement Canada certified for legal-for-trade applications.
Features
- Large bright white LED dot matrix display features on-screen prompts for simplified use
- 6 function, 5 quick, 12 alpha numeric membrane keypad
- Stainless steel platform, powder-coated frame, silver painted column and aluminum load cell
- Durably constructed to perform in demanding environments
- Standard RS232 port with options including second RS232, RS485 or USB device, Ethernet, WiFi, Bluetooth
- 50,000 item library and 1,000 user profiles with included Micro SD card
- Optional analog option or Two In/Four Out Discrete I/O
- PLC connection capability
- Quick setup out-of-the-box with quick-connect display to base
- Minimal training required with intuitive and prompt driven navigation
- 150% safe overload protection
- On-display stability indicator
- User selectable environment and auto-print settings
- Multi-language selection
- Overload and underload indicators
- On-screen checkweighing symbols and programmable audible signals
- Auto-tare and auto-off functions
- NTEP and Canada Measurement approved for legal-for-trade applications
Applications
- Weighing
- Percent weighing
- Parts counting
- Dynamic weighing and display hold
- Checkweighing
Documentation
OHAUS Defender Series Data Sheet Indicator Manual Base Manual
- Capacity:
- 100 lb
- Readability:
- 0.005 lb
- Indicator NTEP CC:
- 18-065
- Base NTEP CC:
- 18-077
- NTEP:
- Yes
- Class:
- III
- Displayed Resolution:
- 1:25,000
- Max Counting Resolution:
- 1:500,000
- Pan Size:
- 12" x 14"
- Display:
- Dot matrix LCD with white LED backlight
- Column:
- 26.8" powder coated steel
- Overload Capacity:
- 150% of rated capacity
- Weighing Units:
- lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
- Keyboard:
- 6 function, 5 quick, 12 alpha numeric membrane switches
- Stabilization Time:
- < 1 seconds
- Key Zeroing Range:
- 2% or 100% of capacity
- Interface:
- Bi-direction RS232C and external input
- Power:
- Power 100-240 VAC / 50/60 Hz Universal Power Supply
- Other power options (not included):
- Rechargeable NiMH battery
- Operating Temperature:
- 14°F to 104°F / -10°C to 40°C
- Weight:
- 24.3 lbs
- Dimensions (L x W x H):
- 19.3" x 12" x 3.9"
- Approvals:
- NTEP certified, Measurement Canada approved, CE, CSA
- Brand:
- OHAUS
- Model:
- D52P50RTR1
