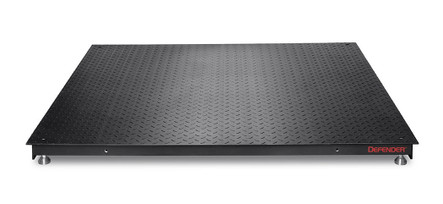

The Ohaus Defender 3000 floor scale platform is the perfect solution for your industrial and commercial weighing requirements. These scales are built with premium-quality materials to ensure minimal flexing even under substantial loads, providing reliable and consistent performance over extended periods. Ohaus offers three sizes including 3' x 3', 4' x 4', and 5' x 5' models to fit any application For added convenience, ramps and mounting plates are also available as optional accessories to enhance the usability of the Defender 3000 Floor Platforms.
Features
- 4 ft. x 4 ft. platform
- Powder coated carbon steel
- Raised treaded surface
- 5mm / 0.196in. fixed top plate
- Two carbon steel eye bolts for lifting
- Four alloy steel shear beam load cells with top-adjustable height swiveling ball-in-cup design
Documentation
1 Manufacturer's Limited Warranty
- Capacity:
- 2,500 lb / 1,250 kg
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- 08-048A2
- Load Cell:
- 4 Shear Beam, alloy steel
- Junction Box:
- IP65, 304 stainless steel, with 20’ EasyConnect cable
- Maximum Central Load:
- 160% of maximum capacity
- Safe Endload Capacity:
- 100% of maximum capacity
- Platform Construction:
- 0.196 inch powder coated Carbon Steel, treaded surface, fixed top plate
- Platform Dimensions (W x H x D):
- 4 ft x 4 ft x 3.5 in.
- Weight:
- 269 lb / 122 kg
- Operating Temperature:
- 14,° to 104,°F / -10,° to 40,°C
- Brand:
- OHAUS
- Model:
- i-DF2500B1L
