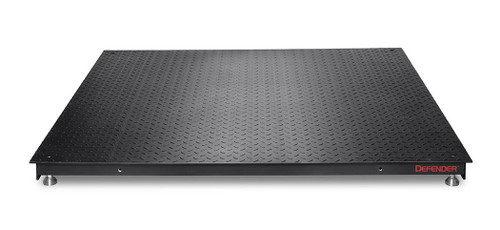

OHAUS VN Series floor scale platforms are an economical and reliable solution for heavy industrial and commercial applications. VN Series platforms feature durable construction designed to minimize distortion under heavy loads and ensure years of dependable use. NTEP certification ensures consistent weighing performance. Available with ramps and mounting feet, the OHAUS VN Series floor platforms offer a unique combination of value, quality and dependability.
Features
- NTEP approved for legal-for-trade applications
- NTEP CC: 08-069
- 5000 lb capacity and 1 lb readability
- 4 ft x 4 ft weighing platform
- 5 mm thick painted carbon steel top plate with cross-hatch surface for added slip resistance
- Four NTEP certified shear beam load cells with IP67 protection rating
- Side access NEMA 4X/IP65 stainless steel junction box with 16.5' length indicator cable
- Internal structural bracing for improved durability and rigidity
- Carbon steel eyebolts attached to the side of the platform to allow easy lifting
- Four ball-in-cup swiveling feet with top-access leveling adjustment for easy installation
- NTEP CC 08-048A1 certification
Documentation
OHAUS Defender 3000 Floor Scale Data Sheet OHAUS Defender 3000 Floor Scale Manual
1 year manufacturer's limited warranty
- Capacity:
- 2500 lb
- Readability:
- 0.5 lb
- Certified Readability (e):
- 0.5 lb
- NTEP:
- Yes
- CC:
- 08-048
- Class:
- III
- Resolution:
- 1:5,000
- Junction Box:
- NEMA4X/IP65, 304 stainless steel, with 16.5 ft / 3 m long indicator cable
- Maximum Central Load:
- 160% of maximum capacity
- Safe Endload Capacity:
- 100% of maximum capacity
- Load Cell Output Impedance:
- 350 ohm
- Load Cell Excitation Voltage:
- 10V DC ~max 15V
- Construction:
- 5mm / 0.2 in painted carbon steel platform
- IP Rating:
- IP67 for shear beam load cells, IP65/NEMA4X for junction box
- Overall Dimensions (W x H x D):
- 3 ft x 3 ft x 3.5 in.
- Weight:
- 221 lb
- Operating Temperature:
- 14° to 104°F / -10° to 40°C
- Brand:
- OHAUS
- Model:
- i-DF2500B1R
