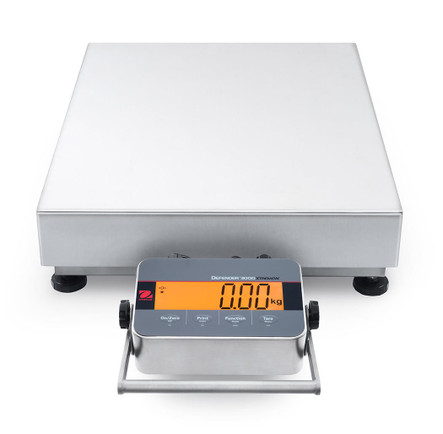

OHAUS Defender 3000 Series washdown bench scales are ideal for general weighing and counting applications in food processing, production, packaging, warehousing, inventory, shipping and receiving areas. The overall stainless steel design is backed with an IP66 rating for use in washdown applications. A new indicator design, that includes a color changing LCD screen, optimizes the Defender 3000 for checkweighing applications by providing real time status prompts. The base features a simple, rugged tubular steel base with overload stops and durable stainless steel weighing pan. For a top quality solution that doesn't break the bank, check out the NTEP approved Defender 3000 by Ohaus.
Features
- Overall stainless steel construction
- IP66 rated
- Multiple weighing units: lb, oz, lb:oz, kg, g
- Large backlit LCD display with color changing prompts for check weighing
- External calibration function with zero calibration, span calibration, and three point linearization calibration
- Interface includes hardwire RS-232 communication
- Optional communication includes USB and Ethernet through accessories (not included)
- Adjustable non-slip rubber leveling feet with externally visible level indicator
- Standard 100-240 VAC power supply (included) or an internal rechargeable battery (included)
Applications
- General Weighing
- Parts Counting
- Check Weighing
- Totalization
Documentation
Defender 3000 DT33XW Indicator Data Sheet Defender 3000 DT33XW Manual Defender 3000 Washdown Datasheet
- Capacity:
- 600 lb
- Readability:
- 0.1 lb
- Certified Readability:
- 0.2 lb
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- Indicator: CC 21-070, Platforms: CC 21-075
- Measurement Canada:
- Indicator: NoA AM-6183, Platforms: NoA AM-6180
- IP Rating:
- IP66
- Weighing Units:
- kg, lb, lb-oz, g
- Display:
- Color changing backlit LCD
- Checkweighing Indicators:
- Green, Yellow, and Red backlight
- Controls:
- 4 membrane function keys
- Stabilization Time:
- Within 1 second
- Zeroing Range:
- +/-2% or +/-100% of capacity
- Communication:
- RS232 (harwired)
- Optional Communication through Accessories:
- USB or Ethernet
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Standard Power Supply:
- 100-240 VAC / 50/60 Hz Universal Power Supply
- Additional Options for Power Supply:
- Internal rechargeable battery (included)
- Base Dimensions:
- 25.6 in x 19.7 in
- Base Construction:
- Stainless steel
- Indicator Construction:
- Stainless steel
- Load Cell Construction:
- Silicon sealed stainless steel loadcell
- Weight:
- approx. 68 lb
- Brand:
- OHAUS
- Model:
- i-D33XW300C1X5
