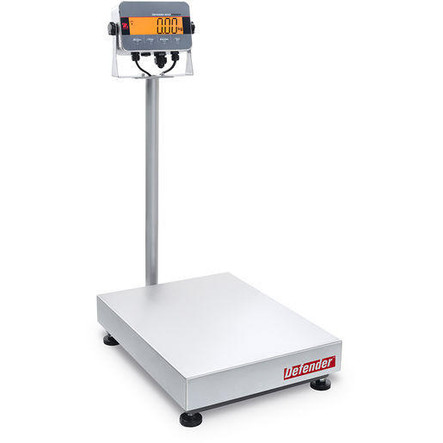

OHAUS Defender 3000 Series bench scales are ideal for general weighing and counting applications in production, packaging, warehousing, inventory, shipping and receiving areas. The new design also includes a color changing LCD screen that provides real time prompts for the status during check weighing applications. The i-D33XW150B1X2 is NTEP and Measurement Canada approved for use in legal-for-trade applications. It features a simple, rugged tubular steel base with overload stops and durable stainless steel weighing pan. For a top quality solution that doesn't break the bank, check out the Defender 3000 by Ohaus.
Features
- Weighing surface dimensions of 25.6 inches x 19.7 inches
- Multiple weighing units: lb, oz, lb:oz, kg, g
- Mild steel base with stainless steel weighing pan and an ABS enclosed indicator
- Large backlit LCD display with color changing prompts for check weighing
- External calibration function with zero calibration, span calibration, and three point linearization calibration
- Interface includes RS-232 communication
- Optional communication includes USB and Ethernet through accessories (not included)
- Adjustable non-slip rubber leveling feet with externally visible level indicator
- Standard 100-240 VAC power supply (included) with the option to use six C batteries or a rechargeable battery (both not included)
Applications
- General Weighing
- Parts Counting
- Check Weighing
- Totalization
Documentation
Defender 3000 DT33P Indicator Data Sheet Defender 3000 DT33P Manual Defender 3000 Datasheet
1 year manufacturer's warranty
- Capacity:
- 300 lb
- Readability:
- 0.05 lb
- Certified Readability:
- 0.1 lb
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- Indicator: CC 21-070, Platforms: CC 21-075
- Measurement Canada:
- Indicator: NoA AM-6183, Platforms: NoA AM-6180
- Weighing Units:
- kg, lb, lb-oz, g
- Display:
- Color changing backlit LCD
- Checkweighing Indicators:
- Green, Yellow, and Red backlight
- Controls:
- 4 membrane function keys
- Stabilization Time:
- Within 1 second
- Zeroing Range:
- +/-2% or +/-100% of capacity
- Communication:
- RS232
- Optional Communication through Accessories:
- USB or Ethernet
- Operating Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Standard Power Supply:
- 100-240 VAC / 50/60 Hz Universal Power Supply
- Additional Options for Power Supply:
- C cell battery or optional internal rechargeable battery (both not included)
- Base Dimensions:
- 25.6 in x 19.7 in
- Column Height:
- 26.8 in high, powder-coated steel
- Base Construction:
- Powder-coated steel base construction and topped with a stainless steel removable weighing pan
- Indicator Construction:
- ABS enclosure
- Load Cell Construction:
- Silicon sealed aluminum loadcell
- Weight:
- approx. 62.3 lb
- Brand:
- OHAUS
- Model:
- i-D33XW150B1X2
