OHAUS D51XW300HX2 Defender 5000X Bench Scale, 600 lb x 0.05 lb, NTEP

MSRP: $2,363.00
$1,890.40
(Save $472.60)
Part #:
80500913
Availability:
Discontinued



This product has been discontinued by the Manufacturer.

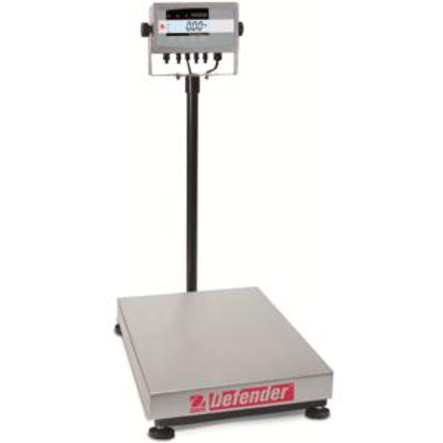

OHAUS D51XW300HX2 Defender 5000X Bench Scale

The OHAUS Defender 5000X Series of bench scales feature a stainless steel T51XW indicator with a stainless steel weighing pan, durable painted steel weighing base and painted steel column. The digital indicator has a NEMA 4X/IP66 protection rating and the load cell has an IP67 protection rating making this scale ideal for washdown environments. The Defender 5000X Series also feature a multi-functional indicator with multiple weighing units and weighing modes.  This combination of features makes them ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. With its rugged construction, intuitive software and multiple communication options, the Defender 5000X can meet the needs of demanding industrial and laboratory operations. Defender 5000X bench scales are NTEP certified and Measurement Canada approved for legal-for-trade applications.

Features

  • NTEP certified and Measurement Canada approved for legal-for-trade applications
  • Durable stainless steel housing indicator with NEMA 4X; IP66 protection rating
  • Adjustable non-slip rubber leveling feet with externally visible level indicator
  • 16.5" x 21.7" Stainless Steel weigh pan
  • 26.8" column
  • Built-in RS232 for printing and data connection
  • One external input for tare, zero, print, or function specific to the weighing application being used
  • AC adapter and internal rechargeable lead acid battery
  • Hardware configuration lockout switch
  • Optional battery power
  • Software menu lockouts
  • LCD backlit display
  • 4 button keypad

Weighing Modes

  • Weighing
  • Parts counting
  • Checkweighing
  • Percent weighing
  • Display hold
  • Dynamic weighing / Animal weighing
1 year manufacturer's warranty
Capacity:
600 lb / 300 kg
Readability:
0.05 lb / 0.02 kg
Certified Readability (NTEP):
0.2 lb / 0.1 kg
NTEP:
Yes
Displayed Resolution:
1:12000
NTEP Approved Resolution:
1:3000
Max Counting Resolution:
1:300,000
Platform Size:
16.5" x 21.7" x 4.9" / 420 x 550 x 125 mm
Display:
Backlit LCD, 1" high digits, Stainless steel housing
Column:
26.8" / 680 mm height; Tubular painted steel
Overload Capacity:
150% of rated capacity
Weighing Modes:
Weighing, Parts Counting, Checkweighing, Percent weighing, Dynamic weighing, Display Hold
Weighing Units:
lb, oz, lb:oz, kg, g, t , and custom unit
Keyboard:
4 mechanical keys, Raised, Tactile
Stabilization Time:
€°¤ 2 seconds
Auto-zero Tracking:
Off, 0.5, 1 or 3 divisions
Key Zeroing Range:
2% or 100% of capacity
Interface:
Bi-direction RS232C and external input
Power:
AC Adapter
Other power options (not included):
Rechargeable NiMH battery or 6 C batteries
Operating Temperature:
14°F to 104°F / -10°C to 40°C
Overall Dimensions w/Tower (L x W x H):
26.4" x 15.7" x 37"
Weight:
64.1 lb
Approvals:
NTEP certified, Measurement Canada approved
Brand:
OHAUS
Model:
D51XW300HX2
