This product has been discontinued by the manufacturer. See the Defender 5000 D52XW125RTX2.

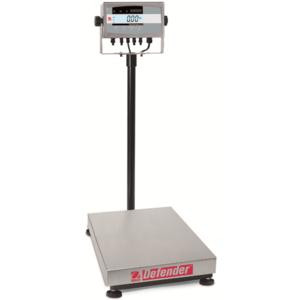

OHAUS D51XW100HL2 Defender 5000X Bench Scale
The OHAUS Defender 5000X Series of bench scales feature a stainless steel T51XW indicator with a stainless steel weighing pan, durable painted steel weighing base and painted steel column. The digital indicator has a NEMA 4X/IP66 protection rating and the load cell has an IP67 protection rating making this scale ideal for washdown environments. The Defender 5000X Series also feature a multi-functional indicator with multiple weighing units and weighing modes. This combination of features makes them ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. With its rugged construction, intuitive software and multiple communication options, the Defender 5000X can meet the needs of demanding industrial and laboratory operations. Defender 5000X bench scales are NTEP certified and Measurement Canada approved for legal-for-trade applications.
Features
- NTEP certified and Measurement Canada approved for legal-for-trade applications
- Durable stainless steel housing indicator with NEMA 4X; IP66 protection rating
- Adjustable non-slip rubber leveling feet with externally visible level indicator
- 15.7" x 19.7" Stainless Steel weigh pan
- 26.8" column
- Built-in RS232 for printing and data connection
- One external input for tare, zero, print, or function specific to the weighing application being used
- AC adapter and internal rechargeable lead acid battery
- Hardware configuration lockout switch
- Optional battery power
- Software menu lockouts
- LCD backlit display
- 4 button keypad
Weighing Modes
- Weighing
- Parts counting
- Checkweighing
- Percent weighing
- Display hold
- Dynamic weighing / Animal weighing
- Capacity:
- 250 lb / 100 kg
- Readability:
- 0.02 lb / 0.01 kg
- Certified Readability (NTEP):
- 0.1 lb / 0.05 kg
- NTEP:
- Yes
- Displayed Resolution:
- 1:12500
- NTEP Approved Resolution:
- 1:2500
- Max Counting Resolution:
- 1:300,000
- Platform Size:
- 15.7" x 19.7" x 4.1" / 400 x 500 x 105 mm
- Display:
- Backlit LCD, 1" high digits, Stainless Steel housing
- Column:
- 26.8" / 680 mm height; Tubular painted steel
- Overload Capacity:
- 150% of rated capacity
- Weighing Modes:
- Weighing, Parts Counting, Checkweighing, Percent weighing, Dynamic weighing, Display Hold
- Weighing Units:
- lb, oz, lb:oz, kg, g, t , and custom unit
- Keyboard:
- 4 mechanical keys, Raised, Tactile
- Stabilization Time:
- < 2 seconds
- Auto-zero Tracking:
- Off, 0.5, 1 or 3 divisions
- Key Zeroing Range:
- 2% or 100% of capacity
- Interface:
- Bi-direction RS232C and external input
- Power:
- AC Adapter
- Other power options (not included):
- Rechargeable NiMH battery or 6 C batteries
- Operating Temperature:
- 14‚°F to 104‚°F / -10‚°C to 40‚°C
- Overall Dimensions w/Tower (L x W x H):
- 24.4" x 15.7" x 37"
- Weight:
- 52.2 lb
- Approvals:
- NTEP certified, Measurement Canada approved
- Brand:
- OHAUS
- Model:
- D51XW100HL2
