This product has been discontinued by the Manufacturer. See Ohaus D52P125RTX5 Defender 5000 Bench Scale.

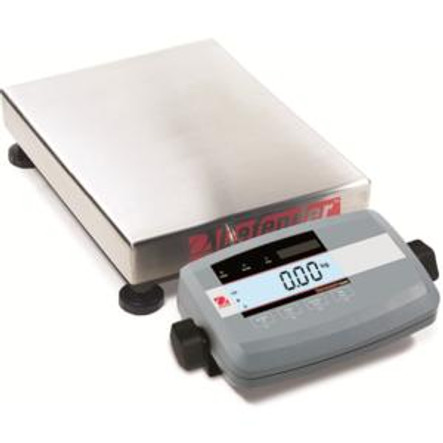

OHAUS D51P60HR5 Defender 5000 Low Profile Bench Scale
The OHAUS Defender 5000 Low Profile Series of bench scales feature an ABS plastic T51P indicator with a stainless steel weighing pan, durable painted steel weighing base and painted steel indicator bracket. The indicator bracket allows the user to mount the digital indicator to the front of the scale base for applications where a column mounted display doesn't work. The Defender 5000 Series also feature a multi-functional indicator with multiple weighing units and weighing modes. This combination of features makes them ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. With its rugged construction, intuitive software and multiple communication options, the Defender 5000 can meet the needs of demanding industrial and laboratory operations. Defender 5000 bench scales are NTEP certified and Measurement Canada approved for legal-for-trade applications.
Features
- NTEP certified and Measurement Canada approved for legal-for-trade applications
- Durable ABS plastic housing indicator with reversible face for either wall, column or table-top mounting
- Adjustable non-slip rubber leveling feet with externally visible level indicator
- 12" x 14" Stainless Steel weigh pan
- Indicator mounted to scale base
- Built-in RS232 for printing and data connection
- One external input for tare, zero, print, or function specific to the weighing application being used
- AC adapter and internal rechargeable lead acid battery
- Hardware configuration lockout switch
- Optional battery power
- Software menu lockouts
- LCD backlit display
- 4 button keypad
Weighing Modes
- Weighing
- Parts counting
- Checkweighing
- Percent weighing
- Display hold
- Dynamic weighing / Animal weighing
- Capacity:
- 150 lb / 60 kg
- Readability:
- 0.01 lb / 0.005 kg
- Certified Readability (NTEP):
- 0.05 lb / 0.02 kg
- NTEP:
- Yes
- Displayed Resolution:
- 1:15000
- NTEP Approved Resolution:
- 1:3000
- Max Counting Resolution:
- 1:300,000
- Platform Size:
- 12" x 14" x 3.7" / 305 x 355 x 95 mm
- Display:
- Backlit LCD, 1" high digits, ABS plastic housing
- Column:
- None
- Overload Capacity:
- 150% of rated capacity
- Weighing Modes:
- Weighing, Parts Counting, Checkweighing, Percent weighing, Dynamic weighing, Display Hold
- Weighing Units:
- lb, oz, lb:oz, kg, g, t , and custom unit
- Keyboard:
- 4 mechanical keys, Raised, Tactile
- Stabilization Time:
- €°¤ 2 seconds
- Auto-zero Tracking:
- Off, 0.5, 1 or 3 divisions
- Key Zeroing Range:
- 2% or 100% of capacity
- Interface:
- Bi-direction RS232C and external input
- Power:
- AC Adapter
- Other power options (not included):
- Rechargeable NiMH battery or 6 C batteries
- Operating Temperature:
- 14°F to 104°F / -10°C to 40°C
- Overall Dimensions (L x W x H):
- 22.8" x 12" x 3.7"
- Weight:
- 23.6 lb
- Approvals:
- NTEP certified, Measurement Canada approved
- Brand:
- OHAUS
- Model:
- D51P60HR5
