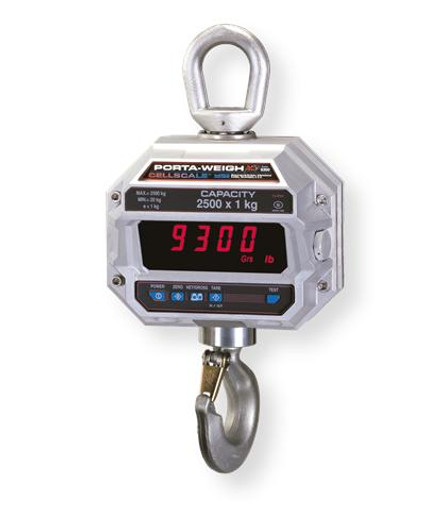

MSI-9300 2000 lb Crane Scale, 2000 lb x 1 lb
The MSI-9300 series crane scale provides the rugged durability that MSI is known for, combined with wireless data processing capabilities, to give you a versatile scale for industrial hanging applications. It features a large 6 digit, 1.2 inch LED digital display with resolution settings up to 10,000 divisions for precise 0.1 percent loading accuracy. Operating times are extended up to 30 hours through a single 12-volt rechargeable battery. The electronics are shock mounted inside the robust NEMA Type 4/IP66 marine grade 356 alloy anodized cast aluminum housing.
Features
- 2000 lb capacity rating
- 1 lb readability
- Safe overload up to 200% capacity
- 6 digit, 1.2" inch LED display
- 12V rechargeable battery with 115/230 V battery charger
- Battery typically allows for 30 hours of operation use before charge required
- Top lifting eye or shackle, bottom thrust bearing swivel hook
- NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum housing
- Functions include power, zero, net/gross, tare and programmable test
- Auto-off mode with selectable time limits
- 1 year warranty
Accessories
- RF remote controller
- Universal direct power supply: 85-265VAC, 47-440Hz/130-300VDC
- Crosby or equivalent top shackle for MSI-8300HT configuration
- Heat shield for hot metal and high temperature applications
- Substitute shackle for bottom swivel hook
- Oversized top lifting eye or shackle
- Oversized bottom swivel hook
- Low headroom adapter
- Ethernet 802.11 b/g connectivity
- Retrofit 4300 to 9300 2450
- Retrofit 4300 to 9300 Modem
- Retrofit 12V 4300 to 9300 2450
- Retrofit 12V 4300 to 9300 No Modem
Note: Contact a Scales Plus sales associate for pricing on accessories
Common Industries
- Industrial Manufacturing
- Steel Manufacturing
- Commercial Fishing
- Shipping
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 2000 lb
- Readability:
- 1 lb
- Resolution:
- 3,000 to 5,000 d standard (up to 10,000 d available)
- Accuracy:
- ±0.1% +1 d of applied load
- Safe Overload:
- 200% capacity
- Calibration:
- Digital
- Portable:
- Yes
- Enclosure:
- NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum
- IP Rating:
- IP66
- Standard functions:
- Power, zero, net/gross, tare and programmable test/user
- Display:
- 6 digit, 1.2 inch LED
- Dimensions:
- 18.3 x 13.5 x 11.65 "
- Units:
- Pounds, kilograms
- Power:
- 12 volt rechargeable battery and 115/230 VAC battery charger
- Operational Time:
- 30 hours
- Operating Temperature:
- -4°F to 158°F
- Filtering:
- OFF, LO, HI-1, HI-2 selectable
- Manufacturer:
- MSI
- Model:
- MSI-9300 2000 lb
