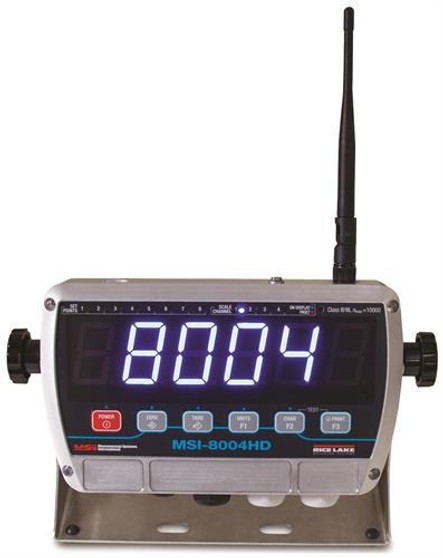

MSI-8004HD Indicator and RF Remote Display, 85~264VAC
MSI-8004HD series indicator features the rugged construction of previous models while adding extremely high visibility in both outdoor and indoor applications. The milled anodized aluminum display has an IP65 rating and is mountable either through a direct panel mount or the included tilt stand. Users can customize the keys of the display to best fit their weighing needs. Communication with peripherals is possible through Wi-Fi, Bluetooth, or serial RF options.
Features
- NEMA type 4, IP65 milled anodized aluminum display
- IP65 rating
- Wi-Fi, Bluetooth, and serial RF ports
- 1.5 inch high characters
- User definable function keys
- Compatible with MSI-ScaleCore crane scales, dynamometers, and TranSend systems
- 1 year warranty
Documentation
MSI-8004HD Indicator Data Sheet
2 year limited manufacturer's warranty
- Display:
- 6 digit, 1.5 inch LED
- Enclosure:
- NEMA Type 4, IP65 milled anodized aluminum
- Keypad:
- On/off, Zero, Tare, Print and two user-defined keys
- Functions:
- Peak Hold, High Resolution, Total, View Total, Net/Gross, Units Switching
- Units:
- Pounds, kilograms, tons, metric tons, kilonewtons
- Dimensions:
- 8.02 x 11.10 x 3.25 "
- Power:
- 90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC, 8-32V, external battery options
- Operating Temperature:
- - 4°F to 140°F (-20°C to 60°C)
- Filtering:
- Off, Low, Hi-1, Hi-2
- Data Output:
- Wi-Fi, Bluetooth, serial RF
- Manufacturer:
- MSI
- Model:
- 8004HD Indicator 85~264VAC
