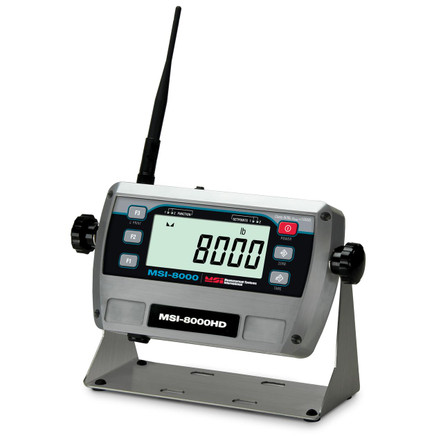

MSI-8000HD Radio Frequency Remote Display with Internal Battery
Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavy duty version of the reputable handheld MSI-8000 RF remote display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.
User-definable function keys and a bold six-digit one inch display ease usability and readability.Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD meters may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD. Wi-Fi, Ethernet or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting.
Features
- Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen
- IP68 milled aluminum enclosure
- Membrane keypad for remote-control functionality
- User definable function keys for added versatility
- Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2
- MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
- Swivel tilt stand
- 1-year warranty
Common Applications
- Crane Scales
- Tension Testing
- NTEP:
- Yes
- Approvals:
- NTEP COC#15-110
- Communication:
- RF, RS232
- Enclosure:
- NEMA Type 4, IP68 milled anodized aluminum with O-ring gaskets
- Keypad:
- On/Off, Zero (100%), Tare, Print, and two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching
- Display:
- Six-digit 1.0 in (26.4 mm) LCD
- Units:
- Pounds, kilograms, tons, metric tons, kilonewtons
- LED Annunciators:
- Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs. Channels: 1, 2, 3, 4, TTL
- Power:
- Internal Battery
- RF Remote Channels:
- Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only)
- RF Radio Link:
- 2.4 GHz 802.15.4 Compatible with all ScaleCoreĀ¢ĀĀĀ¢-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
- RF Effective Range:
- Typically 100 or more feet (33 m)
- Excitation:
- 4.8 V current limited and over-voltage protected
- Operating Temperature:
- - 4ĀĀ°F to 140ĀĀ°F (-20ĀĀ°C to 60ĀĀ°C)
- Filtering:
- Off, Low, Hi-1, Hi-2
- Data Output:
- Dual RS-232
- Manufacturer:
- MSI
- Model:
- MSI-8000HD
