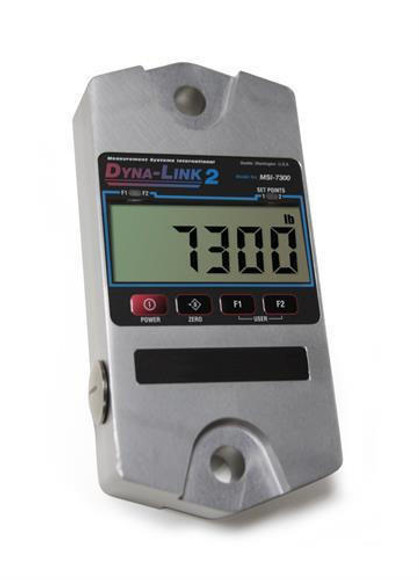

MSI-7300 Dyna-Link 2 series are light, portable, and designed to interface with a variety of accessories and options. The dynamomter is made of high-grade, anodized finished aluminum and gasket sealing featuring NEMA 4/IP65 rated protection. Minimal power output is required to operate the MSI-7300 and as such the battery can last up to 300 hours.
An integrated RF module is included for full function remote operation when combined with the optional MSI-8000 RF remote display. A large 6-digit, 1 inch LCD display with a resolution of 5,000 divisions makes long range viewing of the display easy and clear.
Features
- Requires 2 shackles for use, shackles not included & sold individually
- RF module factory installed and included
- IP65 rating
- Safe overload up to 200% capacity
- Requires 2 D alkaline batteries for operation
Applications
- Crane Scales
- Tension Testing
Documentation
2 year limited manufacturer's warranty
- Capacity Rating:
- 10,000 lb
- Readability:
- 5 lb
- Accuracy:
- 0.1% full scale
- Enclosure:
- NEMA Type 4, IP65, anodized corrosion-resistant finish
- Construction:
- 2024 aircraft grade aluminum Capacities above 100 K have zinc plated enclosures and 4340 load cell bodies
- Safe Overload:
- up to 200% capacity
- Standard functions:
- On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion Filter
- Display:
- 6 digit, 1.00 in (25.4 mm) LCD
- Units:
- Pounds, kilograms, kilonewtons, tons, metric tons
- Dimensions:
- 13.53 x 5 x 1.75 "
- LED Annunciators:
- Function 1, Function 2, Setpoint 1, Setpoint 2
- LCD Annunciators:
- Net, Center of Zero, Stable, Battery Test, Peak Hold, Total
- Power:
- 2 D Alkaline batteries
- Operational Time:
- From 150 to 300 hours
- Operating Temperature:
- - 4°F to 140°F (-20°C to 60°C)
- Calibration:
- Digital
- Filtering:
- OFF, LO, HI selectable
- Data Output:
- Serial RS-232
- Manufacturer:
- MSI
- Model:
- 7300RF Dyna-Link 2 10,000
