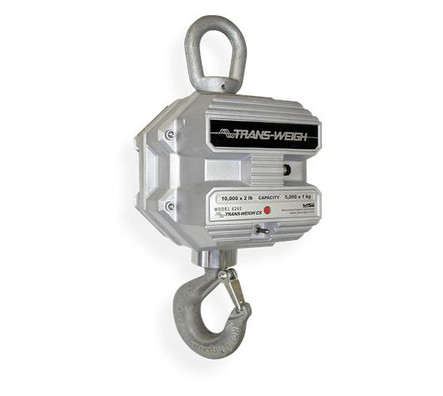

MSI-6260 Trans-Weigh 50,000 lb Crane Scale, 50,000 lb x 10 lb, NTEP, Class III L

MSI-6260 Trans-Weigh 50,000 lb Crane Scale, 50,000 lb x 10 lb, NTEP, Class III L

The MSI-6260 Trans-Weigh series features wireless data collection and transfer capabilities to integrate into nearly all types of plant information systems. Cellscale, the included advanced wireless technology processing, provides versatile solutions for industrial weighing applications by allowing for remote monitoring and operation of multiple scales, as well as communication with other MSI crane scales and peripherals. Operating times are extended up to 40 hours through a single 12-volt rechargeable battery. The electronics are shock mounted inside the robust NEMA Type 4/IP66 marine grade 356 alloy anodized cast aluminum housing.

Features

• NTEP CC: 07-007, Class III L
• 50,000 lb capacity rating
• 10 lb readability
• Safe overload up to 200% capacity
• CellScale wireless technology
• 12V rechargeable battery with 115/230 V battery charger
• Battery typically allows for 40 hours of operation use before charge required
• Top lifting eye or shackle, bottom thrust bearing swivel hook
• NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum housing
• Functions include power, zero, net/gross, tare and programmable test
• Radio Link FHSS at 2.4 GHz
• 1 year warranty

Accessories

• Universal direct power supply: 85-265VAC, 47-440Hz/130-300VDC
• Substitute shackle for bottom swivel hook
• Oversized top lifting eye or shackle
• Oversized bottom swivel hook
• Low headroom adapter
• Anti-heat shielding
• Ethernet 802.11 b/g connectivity
• Retrofit Kit for converting MSI-4260 and MSI-6260 crane scales to MSI-6260CS CellScale configuration

Note: Contact a Scales Plus sales associate for pricing on accessories

Common Industries

• Industrial Manufacturing
• Steel Manufacturing
• Commercial Fishing
• Shipping

Documentation

MSI 6260 Series Data Sheet NTEP Certificate
