Discontinued by the Manufacturer: Replaced with 197761

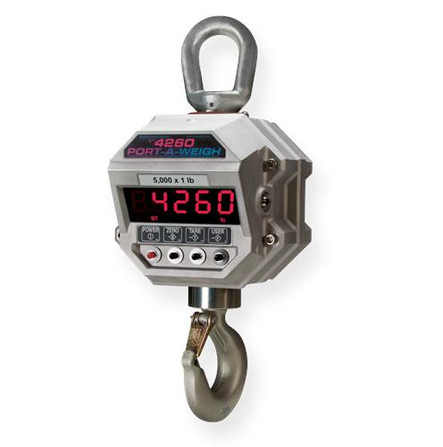

The MSI-4260 Port-A-Weigh crane scale is the culmination of three decades of production, added advancements, and thousands of worldwide installations, making it the ideal scale for industrial hanging applications. It features a large 5 digit, 1.2 inch LED digital display with resolution settings up to 10,000 divisions for precise 0.1 percent loading accuracy. Operating times are extended up to 200 hours through a single 12-volt rechargeable battery. The electronics are shock mounted inside the robust NEMA Type 4/IP66 marine grade 356 alloy anodized cast aluminum housing.
Features
- NTEP CC: 89-090, Class III
- 2,000 lb capacity rating
- 1 lb readability
- Safe overload up to 200% capacity
- 5 digit, 1.2" inch LED display
- 12V rechargeable battery with 115/230 V battery charger
- Battery typically allows for 200 hours of operation use before charge required
- Top lifting eye or shackle, bottom thrust bearing swivel hook
- NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum housing
- Functions include power, zero, net/gross, tare and programmable test
- Auto-off mode with selectable time limits
- 1 year warranty
Accessories
- RF remote controller
- RF modern link for wireless connectivity with optional MSI-8000 RF Remote Display
- Universal direct power supply: 85-265VAC, 47-440Hz/130-300VDC
- Heat shield for hot metal and high temperature applications
- Substitute shackle for bottom swivel hook
- Oversized top lifting eye or shackle
- 802.11 b/g wireless module/Bluetooth
- Retrofit Kit: Upgrade previous MSI-4260 to new generation MSI-4260 with ScaleCore
- Optional FM and ATEX approvals for applications requiring Intrinsic Safety
Note: Contact a Scales Plus sales associate for pricing on accessories
Common Industries
- Industrial Manufacturing
- Steel Manufacturing
- Commercial Fishing
- Shipping
Documentation
- Capacity:
- 2,000 lb
- Readability:
- 1 lb
- NTEP:
- Yes
- Class:
- III
- Resolution:
- 3,000 to 5,000 d standard
- Accuracy:
- ±0.1% +1 d of applied load
- Safe Overload:
- 200% capacity
- Calibration:
- Digital
- Portable:
- Yes
- Enclosure:
- NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum
- IP Rating:
- IP66
- Standard functions:
- Power, zero, net/gross, tare and programmable test/user
- Display:
- 5 digit, 1.2 inch LED
- Dimensions:
- 18.3 x 13.37 x 10.00 "
- Units:
- Pounds, kilograms
- Power:
- 12 volt rechargeable battery and 115/230 VAC battery charger
- Operational Time:
- 200 hours
- Operating Temperature:
- 5°F to 122°F
- Filtering:
- OFF, LO, HI-1, HI-2 selectable
- Manufacturer:
- MSI
- Model:
- MSI-4260 Port-A-Weigh 2,000 lb
