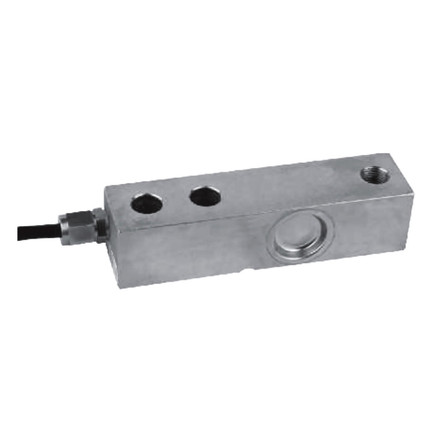

Keli SQBY-1Klb 1000 lb Single Ended Beam Load Cell
Features
- 1000 lb capacity rating
- NTEP approved (view certificate below)
- Alloy steel construction, nickel plated
- IP67 rating
- 3 mV/V output
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
Common Applications
- OEM
- Floor scales
- Low profile scales
- Hoppers
- Tank scales
Interchange
- Rice Lake Weighing Systems RL35023/39123
- Sensortronics 65023
- Zemic H8C
- Anyload 563YH
Keli SQBY Certificate Of Conformance NTEP Approved
1 year limited manufacturer's warranty
- Manufacturer:
- Keli
- Model:
- SQBY-1Klb
- Capacity:
- 1000 lb
- NTEP:
- Yes
- NTEP CC:
- 08-009A2
- Safe Overload:
- 150% capacity
- Ultimate Overload:
- 180% capacity
- Construction:
- alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10-12 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 400 (+/-10) ohms
- Compensated Temperature Range:
- 14‚°F to 104‚°F (-10‚°C to 40‚°C)
- Operating Temperature Range:
- -30‚°C to 70‚°C
- IP Rating:
- IP67
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 10 ft
