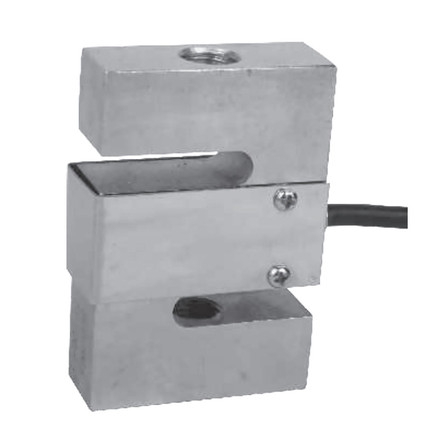

Keli DEFY-100lb S-Beam Load Cell
Features
- 100 lb capacity rating
- Eye bolts included
- OIML Certified 3000 D
- Alloy steel construction, nickel plated
- IP65 rating
- 3 mV/V output
- Safe overload 150% capacity
- Maximum overload 200% capacity
- Load cell cable length approximately 16.5 ft
Common Applications
- OEM
- Hoppers
- Crane scales
Interchange
- Sensortronics 60050
- Zemic B3G-Y
- Celtron STR
1 year limited manufacturer's warranty
- Manufacturer:
- Keli
- Model:
- DEFY-100lb
- Capacity:
- 100 lb
- Safe Overload:
- 150% capacity
- Ultimate Overload:
- 200% capacity
- Construction:
- Alloy steel
- Finish:
- Nickle plating
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10-12 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 352 (+/- 3) ohms
- Input Resistance:
- 400 (+/-10) ohms
- Operating Temperature Range:
- -10 to +40¢€žÃ†’
- IP Rating:
- IP65
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- Approximately 16.5 ft
- Dimensions LxWxH (mm):
- 51 x 12.4 x 63.5
- Threading:
- 1/4-28 UNF
