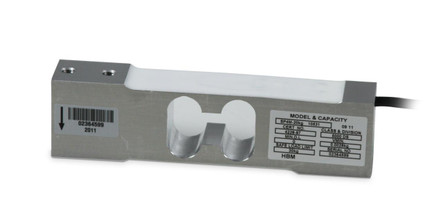

The low-profile, off-center design of the HBM SP4M is specifically engineered for implementation in various settings such as retail, postal, and platform scale applications. Constructed using aluminum, this load cell is designed to deliver accuracy by incorporating movement compensation technology. To safeguard against the impact of high humidity environments, it is fortified with a top-notch gauge coating compound. It is available in capacities ranging from 3 kg to 100 kg and includes a standard 10 ft load cell cable.
Features
- 100 kg capacity rating
- Anodized aluminum construction
- Environmentally sealed IP67
- 2.0 mV/V output
- Load cell cable length 3.1 m
- Safe overload up to 150% capacity
Interchange
- Rice Lake RLSP4
- Rice Lake RL1042
- VPG Tedea-Huntleigh 1042
- CotiGlobal CG-42
Common Applications
- Bench scales
- Platform scales
Documentation
1-year manufacturer's limited warranty
- Manufacturer:
- HBM
- Model:
- SP4M-100kg
- Approvals:
- NTEP 1:5000 Class III, FM
- Capacity:
- 100 kg
- Safe Overload:
- 150% capacity
- Length:
- 150.3 mm
- Height:
- 39.9 mm
- Width:
- 25.4 mm
- Hole Thread:
- 1/4-20 UNC x .44
- Construction:
- Anodized Aluminum
- Cable Color Code:
- Blue +Excitation, Black €“Excitation, White +Signal, Red €“Signal, Green +Sense, Grey €“Sense
- Rated Excitation:
- 5- 10 VDC (15 V maximum)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 350 ohms
- Compensated Temperature Range:
- 14°F to 104°F (-10°C to 40°C)
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 10 ft
