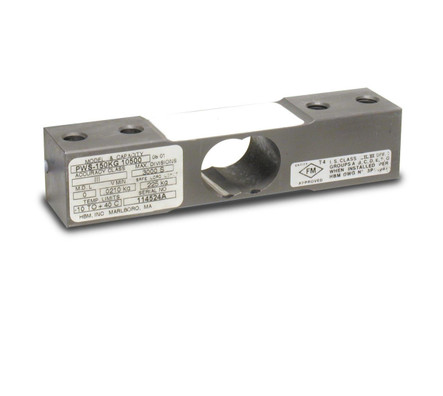

The HBM PWS stainless steel single-point cell features an IP67 rating and an environmental seal. It is rated for up to a 150% overload capacity for assurance in the overall durability. With a capacity range spanning from 7 kg to 150 kg, it offers versatility for various applications. It also comes equipped with 10 ft of load cell cable and is NTEP approved for use in legal for trade application.
Features
- 30 kg capacity rating
- Stainless steel construction
- Environmentally sealed IP67
- 1 year limited manufacturer's warranty
- NTEP Approved Class III 1:3000
- Safe overload up to 150% capacity
- 10 ft of cable
Interchange
- Rice Lake RL1380
- Flintec PC3
- CotiGlobal CG-PWS
Common Applications
- Bench scales
- Platform scales
Documentation
1 year limited manufacturer's warranty
- Manufacturer:
- HBM
- Model:
- PWS-30kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:3000 Class III
- Capacity Rating:
- 30 kg
- Safe Overload:
- 150% capacity
- Length:
- 139.7 mm
- Height:
- 23.9 mm
- Width:
- 30.2 mm
- Thredding:
- 1/4-20 UNC
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 359 (± 10) ohm
- Input Resistance:
- 390 (± 15) ohm
- Insulation Resistance:
- 5,000 megohms
- Compensated Temperature Range:
- 14 °F to 104 °F (-10 °C to 40 °C)
- Operating Temperature Range:
- 0 °F to 150 °F (-18 °C to 65 °C)
- Seal Type:
- Environmentally sealed IP67
- Combined Error:
- 0.03 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.190 PVC jacket
