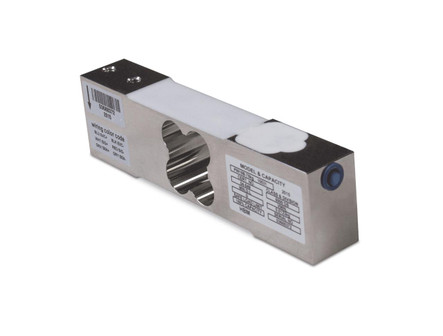

The HBM PW15 single point is a reliable load cell for a wide range of industrial applications. This load cell is constructed using high-quality stainless steel, ensuring exceptional durability and accuracy. The PW15 load cell utilizes a single point design, making it ideal for applications requiring high accuracy and precision. Its compact size and low profile allow for easy integration into various weighing systems, including small platform scales and bases. Its application is designated for weighing small items or medium containers. With its 150% overload capacity, it can handle sudden load changes and shocks, providing dependable performance and peace of mind. Installation and setup of the PW15 load cell are straightforward. Its design includes integrated mounting holes, facilitating quick and secure installation into existing systems.
Features
- 100 kg capacity rating
- Stainless steel construction
- Environmentally sealed IP67
- 1 year limited manufacturer's warranty
- NTEP Approved Class III 1:5000
- Safe overload up to 150% capacity
- 10 ft of cable
Interchangeable Products
- Rice Lake RLPWM15
- VPG Tedea-Huntleigh 1142
- CotiGlobal CG-42-SS
Documentation
- Manufacturer:
- HBM
- Model:
- PW15-100kg-10531
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:5000 Class III
- Capacity Rating:
- 100 kg
- Safe Overload:
- 150% capacity
- Length:
- 150 mm
- Height:
- 40 mm
- Width:
- 25 mm
- Thredding:
- 1/4-20
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Blue = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Green = + Sense, Grey = - Sense
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 359 (± 5) ohm
- Input Resistance:
- 380 (± 15) ohm
- Insulation Resistance:
- 1,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- 0° F to 150° F / -18°C to 65°C
- Seal Type:
- Environmentally sealed IP67
- Combined Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.190 PVC jacket
