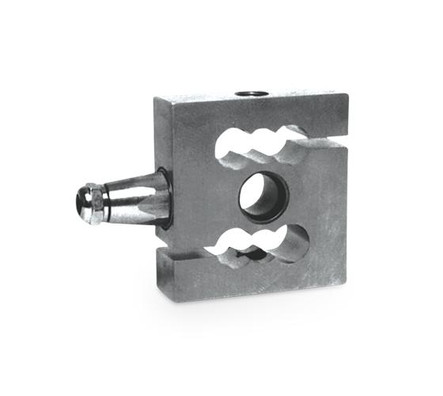

Flintec UB1-20kN-C3 S-Beam Load Cell
Features
- 4500 lb / 2039 kg capacity rating
- Tension and compression loading
- Full scale output of 2 mV/V
- Stainless steel construction
- Hermetically seal IP69K
- Safe overload up to 200% capacity
- 20 feet of cable
- NTEP and OIML approved
Common Applications
- OEM
- Tank Scales
- Crane Scales
1 year limited manufacturer's warranty
- Manufacturer:
- Flintec
- Model:
- UB1-20kN-C3
- Approvals:
- cFM, OIML
- NTEP:
- Class III 1:5000, Class IIIL 1:10,000
- Capacity:
- 4500 lb
- Capacity:
- 2039 kg
- Safe Overload:
- 200% capacity
- Maximum Overload:
- 300% capacity
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 1,000 (± 2) ohm
- Input Resistance:
- 1,100 (± 50) ohm
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Insulation Resistance:
- 10,000 megohms
- Construction / Finish:
- Stainless steel
- Compensated Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Hermetically sealed
- IP Rating:
- IP68
- Total Error:
- ± 0.03%
- Hysteresis:
- 0 to +0.05% full scale
- Nonlinearity:
- 0 to -0.03% full scale
- Length:
- 3.38"
- Width:
- 1.18"
- Height:
- 3.62"
- Thredding:
- 5/8-18 UNF
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.196 polyurethane jacket
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
