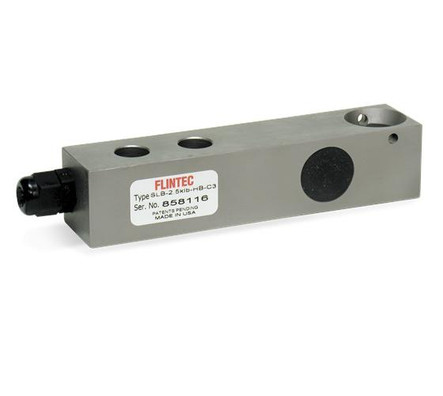

Flintec SLB-2.5KLB-HB-C3 Single Ended Beam Load Cell
Features
- 2500 lb capacity rating
- Blind hole design, load cell foot may be required for application
- Full scale output of 2 mV/V
- Stainless steel construction
- Potted seal IP67
- Safe overload up to 200% capacity
- 10 feet of cable
Interchange
- Fairbanks LCF-HR4050-3
Common Applications
- OEM
- Floor Scales
- Tank Scales
- Conveyor Scales
- Pallet Truck Scales
1 year limited manufacturer's warranty
- Manufacturer:
- Flintec
- Model:
- SLB-2.5KLB-HB-C3
- Approvals:
- cFM, OIML
- NTEP:
- Class III 1:4000 Single Cell, Class III 1:7500 Multiple Cell
- Capacity:
- 2500 lb
- Safe Overload:
- 200% capacity
- Safe Sideload:
- 100% capacity
- Maximum Overload:
- 300% capacity
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 1,000 (± 2) ohm
- Input Resistance:
- 1,100 (± 50) ohm
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Insulation Resistance:
- 5,000 megohms
- Construction:
- Stainless steel
- Compensated Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Potted seal
- IP Rating:
- IP67
- Combined Error:
- 0.01% full scale
- Length:
- 5.37"
- Width:
- 1.19"
- Height:
- 1.19"
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.196 polyurethane jacket
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
