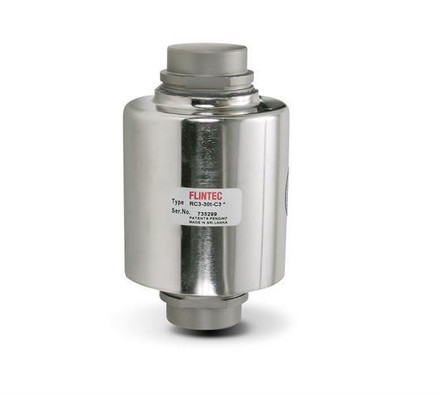

Flintec RC3-15t-C3 15 ton Stainless Steel Rocker Load Cell, NTEP, OIML
Features
- 15 ton / 30,000 lb capacity rating
- Compression loading
- Full scale output of 2 mV/V
- Stainless steel construction
- Hermetically seal IP69K
- Safe overload up to 200% capacity
- Safe sideload up to 200% capacity
- 40 feet of cable
- NTEP and OIML approved
Common Applications
- OEM
- Truck Scales
- Silo Scales
- Railroad Scales
Note:
Should you require load cups for replacing cells please contact for prices.
1 year limited manufacturer's warranty
- Manufacturer:
- Flintec
- Model:
- RC3-15t-C3
- Approvals:
- cFM, OIML
- NTEP:
- Class III 1:10,000
- Capacity:
- 15 ton
- Capacity:
- 30,000 lb
- Safe Overload:
- 200% capacity
- Maximum Overload:
- 300% capacity
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 1,000 (± 2) ohm
- Input Resistance:
- 1,150 (± 50) ohm
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Insulation Resistance:
- 5,000 megohms
- Construction:
- Stainless steel
- Compensated Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Hermetically sealed
- IP Rating:
- IP69K
- Combined Error:
- 0.02% full scale
- Height of cap:
- 0.43"
- Width of caps:
- 1.1"
- Height:
- 3.5"
- Cable Length:
- 40 ft
- Cable Diameter:
- 0.307polyurethane jacket
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
